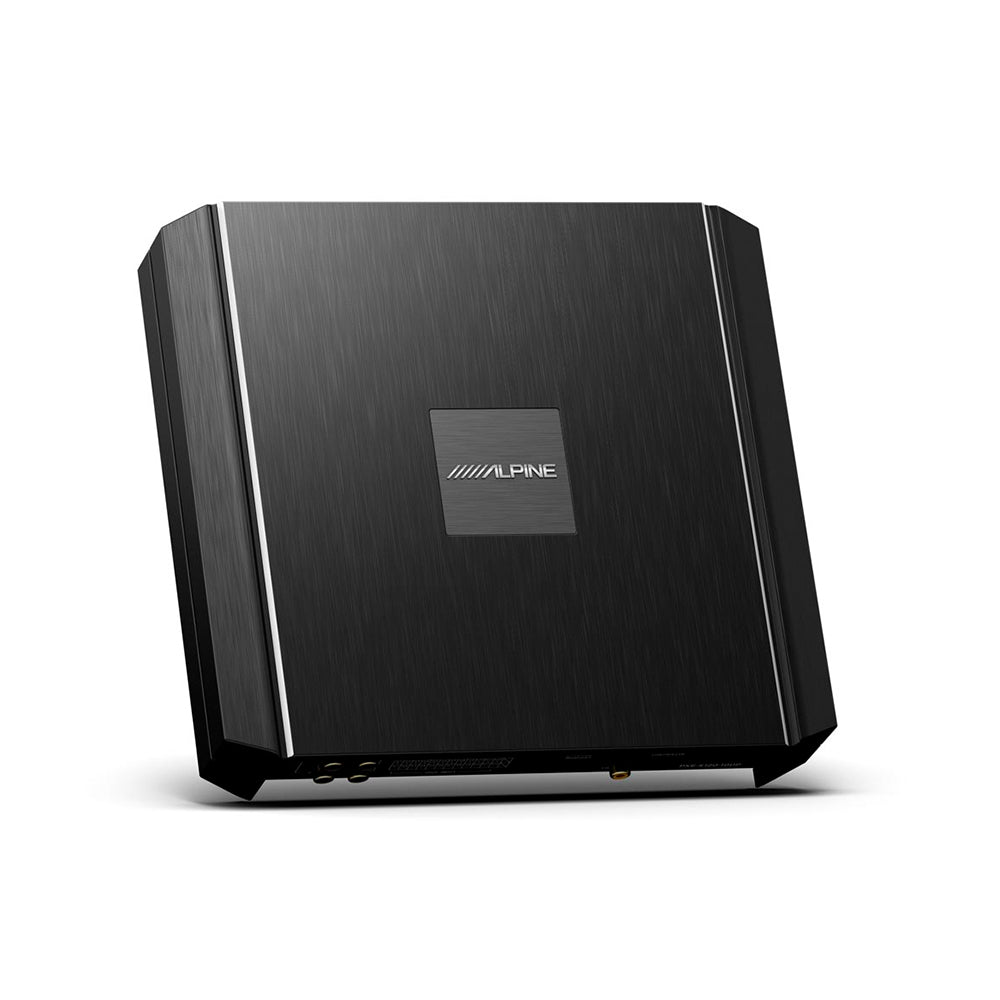

ALPINE BMW 12 CHANNEL DSP WITH AMP (4 X 25W RMS + 4 X 50W RMS + 2 X 100W RMS) (BT MODULE INCLD) - PXE-X120-10DP-BMW

NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.

PXE-X120-10DP Sound Processor Support BMW-Series. Alpine Exclusive Sound System For BMW Series! Sound Tuning By Alpine Sound Specialist. 12-CH &Output Support Subwoofer. Built-In High-Power Amplifier. Exclusive Emotion And Mobility In Your BMW.

* Please check BMW compatible model before install

Specifications:
• Frequency Response: 20Hz~20kHz, Resolution: 1Hz

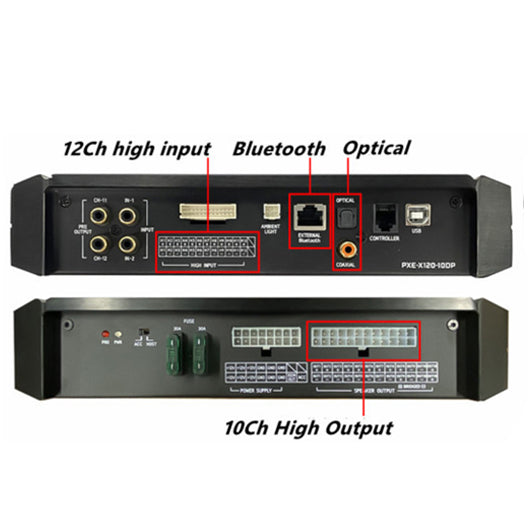

• Inputs:
- 12 Ch Hi-Level / 2-Ch RCA
- Bluetooth / Optical / Coaxial
• Outputs:
- 10 Ch Hi-Level / 2 Ch RCA
- 25W RMS x 4 + 50W RMS x 4 + 100W RMS x 2
- Sampling Rate : 48KHz /24Bit
• Sound & Tuning:
- 31-Band Parametric or Graphic EQ
- HPF /LPF / Bandpass Crossover per channel
- PC / Smartphone Tuning Application
- Matrix input summing

• Dimension: 250mm x 234mm x 50mm

Applications:
Compatible BMW Models (G-Series):
3 Series: G20 (2018–2024), G21 (2019–2024), G80 M3 (2020–2024), G81 M3 Touring (2022–2024)
4 Series: G22 (2020–2024), G23 (2020–2024), G26 (2021–2024), G82 M4 (2020–2024), G83 M4 (2021–2024)
Key Features & Requirements:
System Requirement: Specifically designed for G-series with a RAM unit.
Installation: Uses specialized T-harness cables (KWX-H9-BMW or KWX-H48-BMW).
