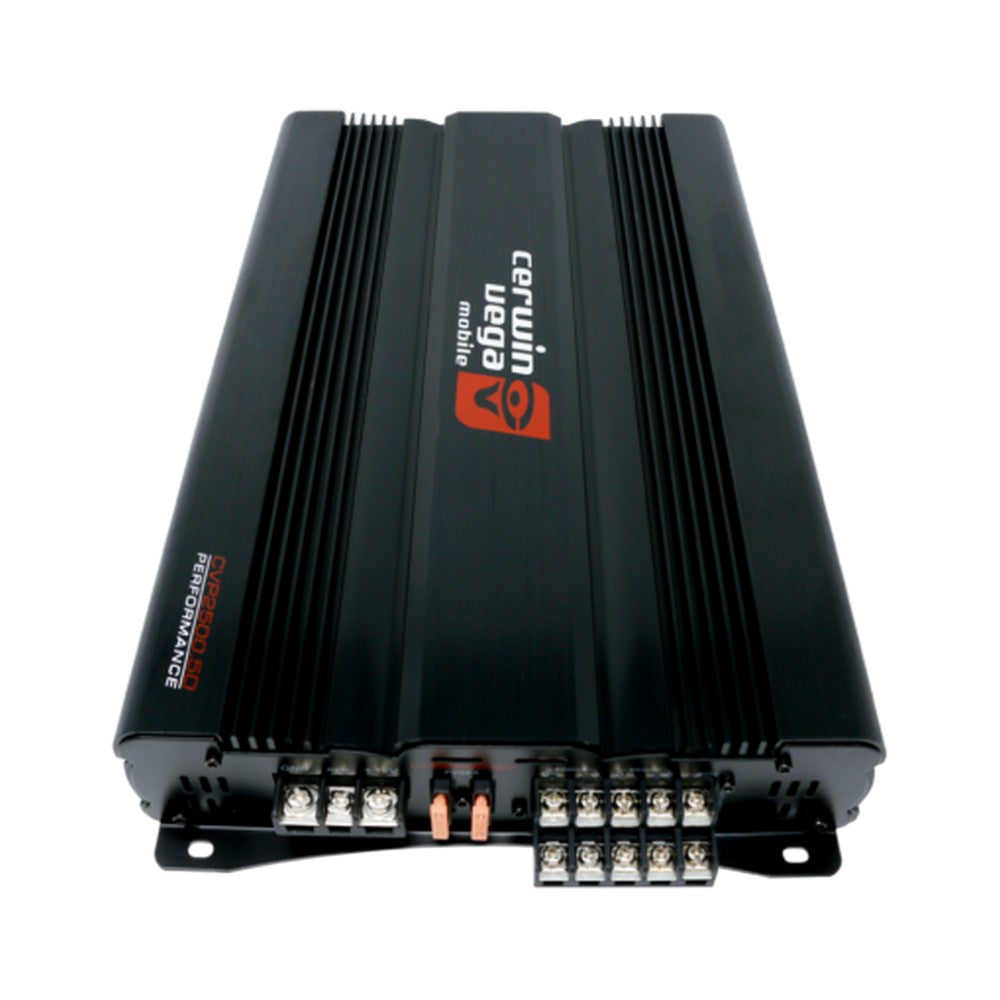

CVP2500.5D – 5-Channel 2500W Class A/B Amplifier
Features
Latest High-Efficiency Class A/B Topology
Compact Size with Ambient backlit logo
RCA “Pass Thru” output for easy system expansion

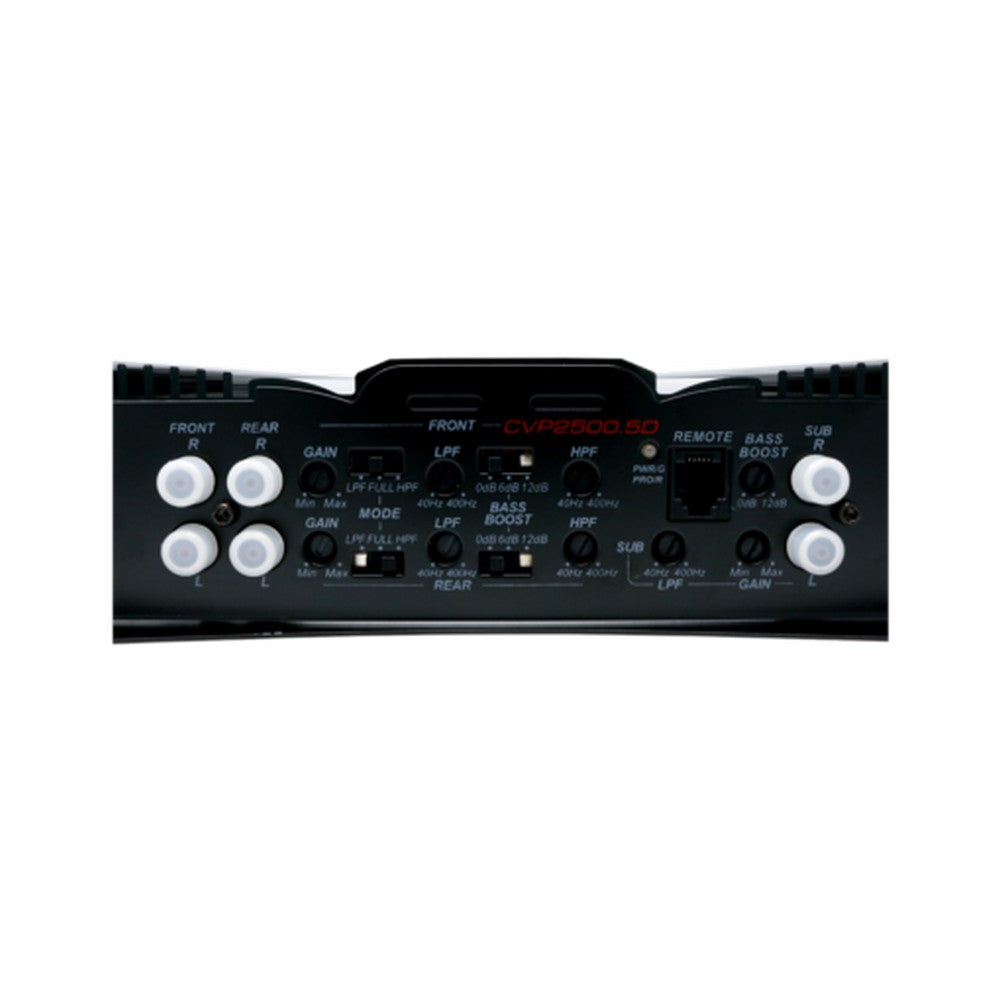

Fully Variable Crossovers (12dB per octave)
Handles HI and LO level input to 12V
Proprietary Vega Bass Boost EQ Up To 12dB

Specifications
5 Channel Amplifier
85W x 4 + 300W x 1 @ 2Ω RMS
65W x 4 + 185W x 1 @ 4Ω RMS

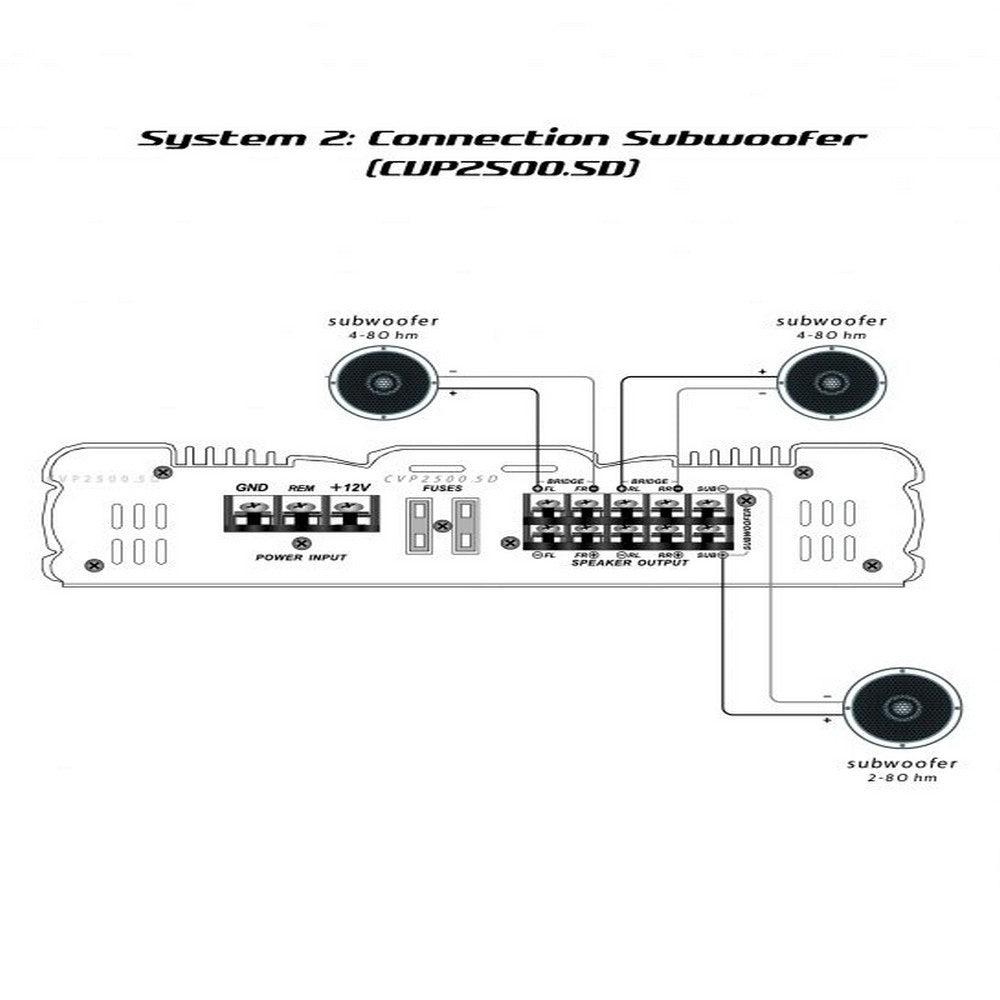

180w x 2 + N/A Front and Rear channels Bridged
Class A/B
Direct Short, Thermal, & Overload Circuits Protect Amplifier
Power Supply 10-16VDC
Sensitivity 200mV-6V
Variable 12dB High, Low, & Subsonic Crossovers

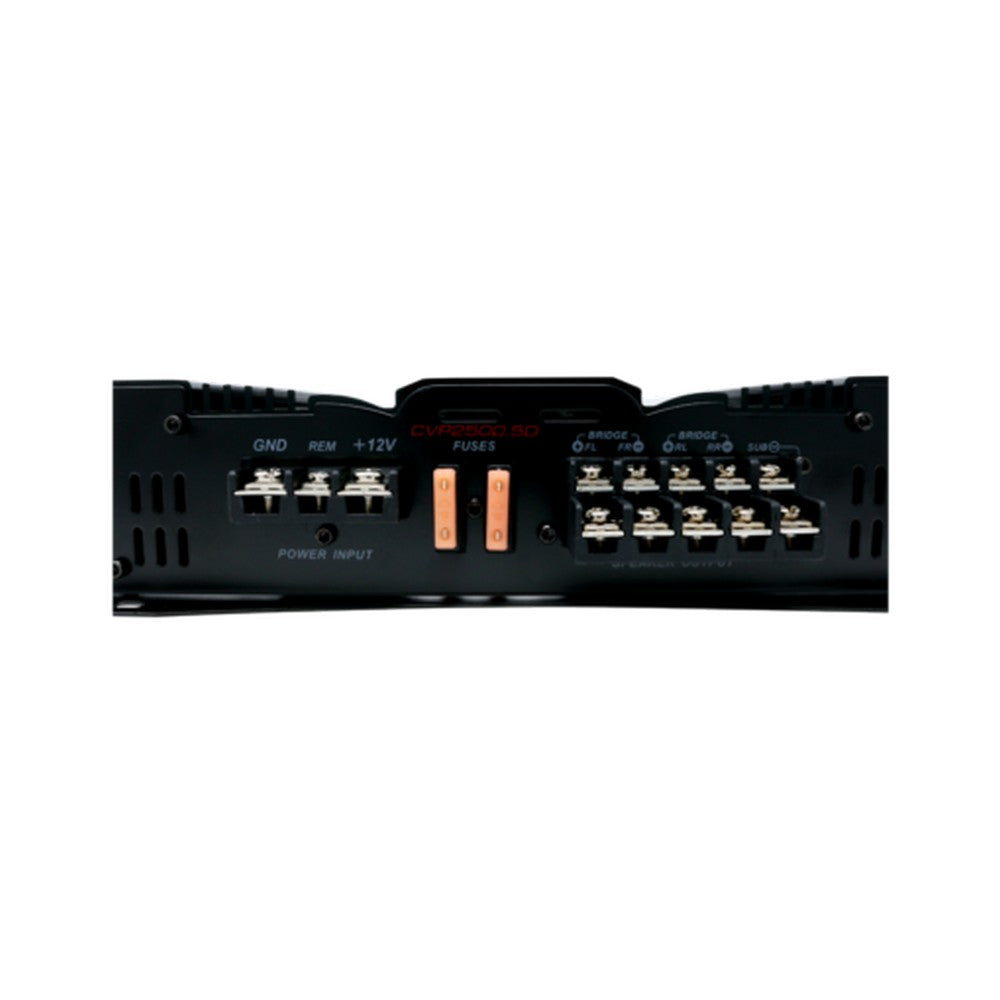

Fuse Rating - 40 Amp x 2

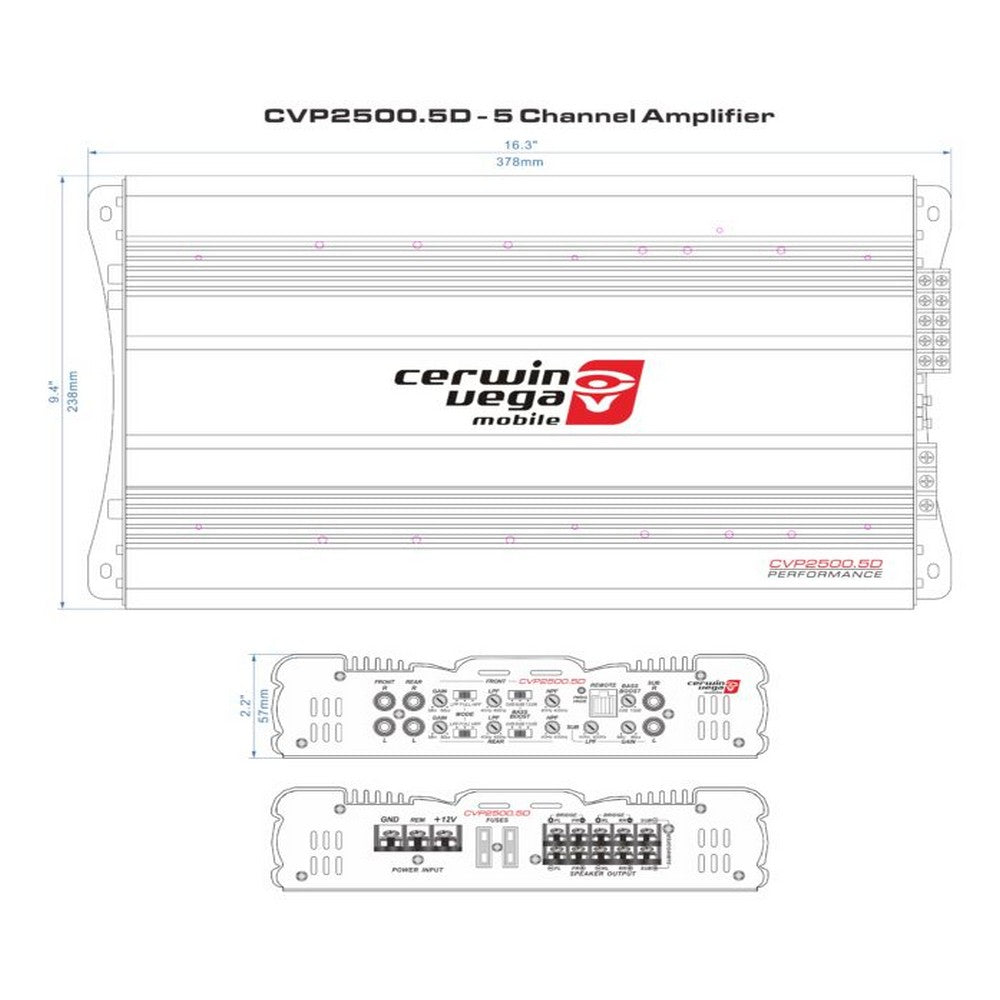

Dimensions: 14.97′ x 9.38′ x 2.25′ (380mm x 238mm x 57mm)
