DB DRIVE | SKU:
FORMULA-NEOM1

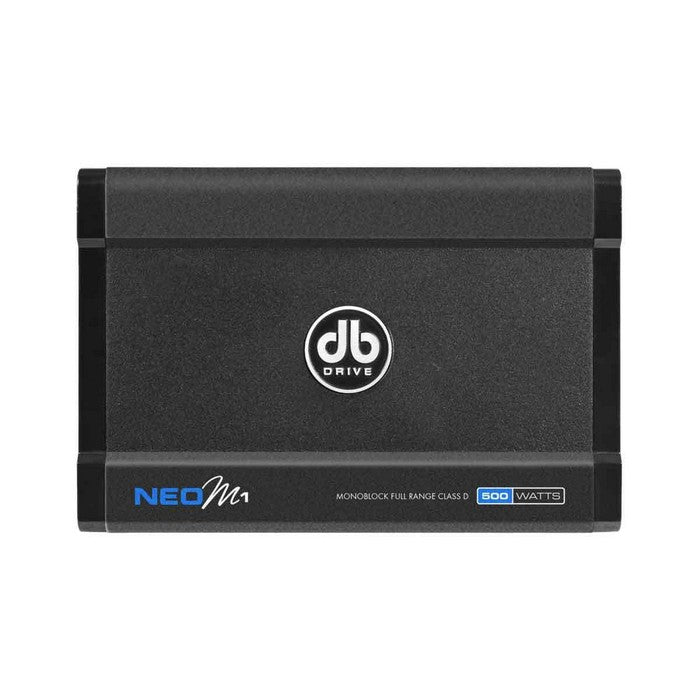

DB DRIVE AMP NEO MINI MONO - 1 x 250 RMS @ 4 OHM / 1 X 500 RMS @ 2 OHM - NEOM1
$259.00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Couldn't load pickup availability
NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.
Description
Mono Class D Technology
2Ω Mono load Capability
Audiophile Grade Nickel Plated RCA connectors
Variable 12db Low-pass crossover
Selectable 12dB Bass Boost
Variable Sub-sonic Filter
Marine Grade Conformal Coated Double Sided PCB
Compatible with any 4/2Ω Subwoofer
Features
Rated @14 Volts 1 x 250 Watts @ 4?1 x 500 Watts @ 2?
THD (100Hz @ 1Ω) 0.04%
Bandwidth (-3 dB) 18Hz – 22KHz
Damping Factor (1KHz @ 4Ω) 100
S/N ratio (as weighted @ 1 Volt) 99db
Input Sensitivity .20V – 5.0V RMS
Minimum Load Impedance 2Ω
Low-Pass Filter Range 50Hz – 150Hz
Sub-Sonic Filter Range 15Hz – 50Hz

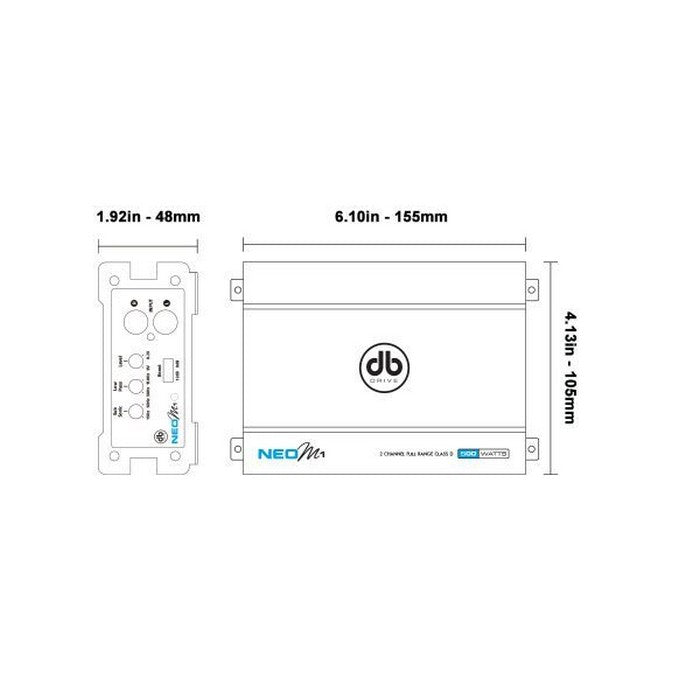

Dimensions
Length 6.10′ / 155 mm
Width 4.13′ / 105 mm
Height 1.92′ / 48 mm
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.
Description
Mono Class D Technology
2Ω Mono load Capability
Audiophile Grade Nickel Plated RCA connectors
Variable 12db Low-pass crossover
Selectable 12dB Bass Boost
Variable Sub-sonic Filter
Marine Grade Conformal Coated Double Sided PCB
Compatible with any 4/2Ω Subwoofer
Features
Rated @14 Volts 1 x 250 Watts @ 4?1 x 500 Watts @ 2?
THD (100Hz @ 1Ω) 0.04%
Bandwidth (-3 dB) 18Hz – 22KHz
Damping Factor (1KHz @ 4Ω) 100
S/N ratio (as weighted @ 1 Volt) 99db
Input Sensitivity .20V – 5.0V RMS
Minimum Load Impedance 2Ω
Low-Pass Filter Range 50Hz – 150Hz
Sub-Sonic Filter Range 15Hz – 50Hz
Dimensions
Length 6.10′ / 155 mm
Width 4.13′ / 105 mm
Height 1.92′ / 48 mm
