DB DRIVE | SKU:
FORMULA-NEOM2
DB DRIVE AMP NEO MINI 2 CH - 2 X 125 RMS @ 4 OHM / 2 X 250W RMS @ 2 OHM - NEOM2
Regular price
$259.00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Couldn't load pickup availability
NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.
Description
2 Channel Class D Full Range Technology
2Ω Stereo load Capability
Audiophile Grade Nickel Plated RCA connectors
Variable 12db High-Pass or Low-pass crossover filters
Bridgeable outputs @ 4Ω load
Marine Grade Conformal Coated Double Sided PCB
Compatible with any 4/2Ω Loudspeaker
Features
Rated @14 Volts 2 x 125 Watts @ 4?1 x 500 Watts @ 4? Bridged2 x 250 Watts @ 2?
THD (100Hz @ 1Ω) 0.04%
Bandwidth (-3 dB) 18Hz – 22KHz
Damping Factor (1KHz @ 4Ω) 100
S/N ratio (as weighted @ 1 Volt) 99db
Input Sensitivity .20V – 6V RMS
Minimum Load Impedance 2Ω
High-Pass Crossover filter range 15Hz – 300Hz
Low-Pass Crossover filter range 50Hz – 300Hz

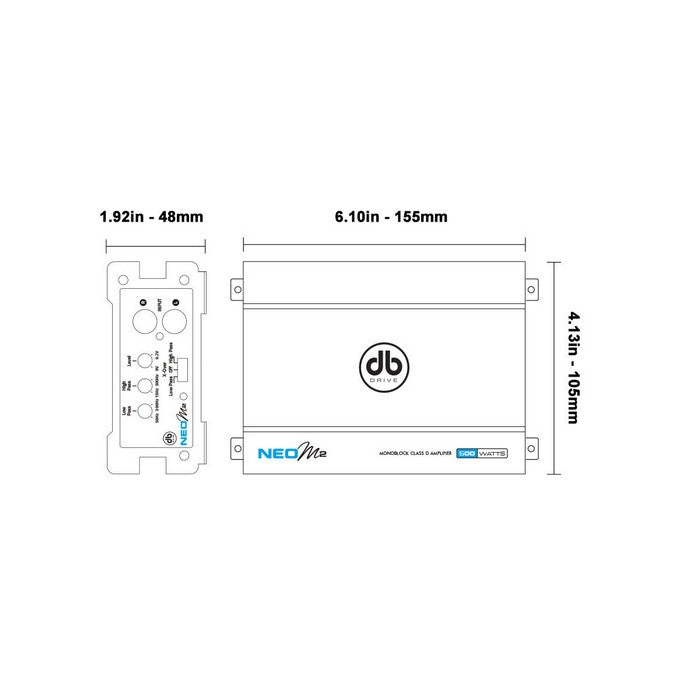

Dimensions
Length 6.10′ / 155 mm
Width 4.13′ / 105 mm
Height 1.92′ / 48 mm
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.
Description
2 Channel Class D Full Range Technology
2Ω Stereo load Capability
Audiophile Grade Nickel Plated RCA connectors
Variable 12db High-Pass or Low-pass crossover filters
Bridgeable outputs @ 4Ω load
Marine Grade Conformal Coated Double Sided PCB
Compatible with any 4/2Ω Loudspeaker
Features
Rated @14 Volts 2 x 125 Watts @ 4?1 x 500 Watts @ 4? Bridged2 x 250 Watts @ 2?
THD (100Hz @ 1Ω) 0.04%
Bandwidth (-3 dB) 18Hz – 22KHz
Damping Factor (1KHz @ 4Ω) 100
S/N ratio (as weighted @ 1 Volt) 99db
Input Sensitivity .20V – 6V RMS
Minimum Load Impedance 2Ω
High-Pass Crossover filter range 15Hz – 300Hz
Low-Pass Crossover filter range 50Hz – 300Hz
Dimensions
Length 6.10′ / 155 mm
Width 4.13′ / 105 mm
Height 1.92′ / 48 mm
