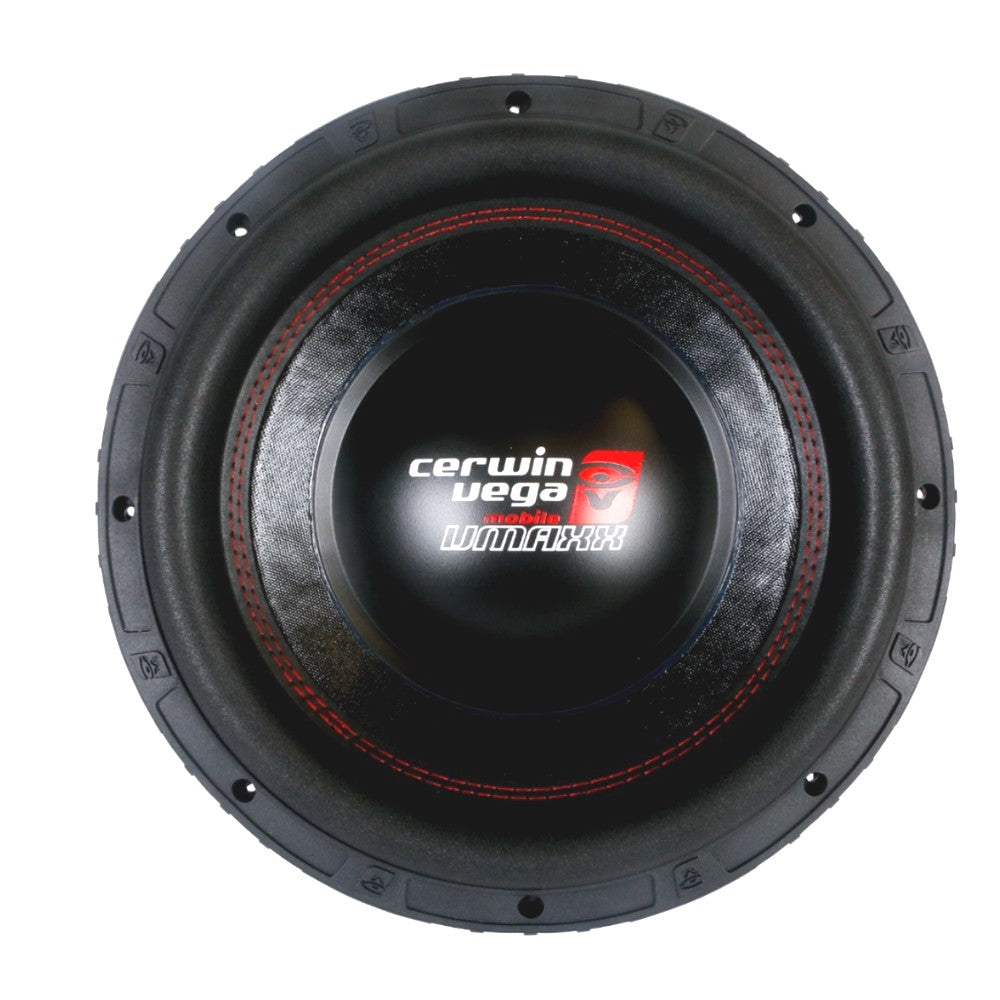

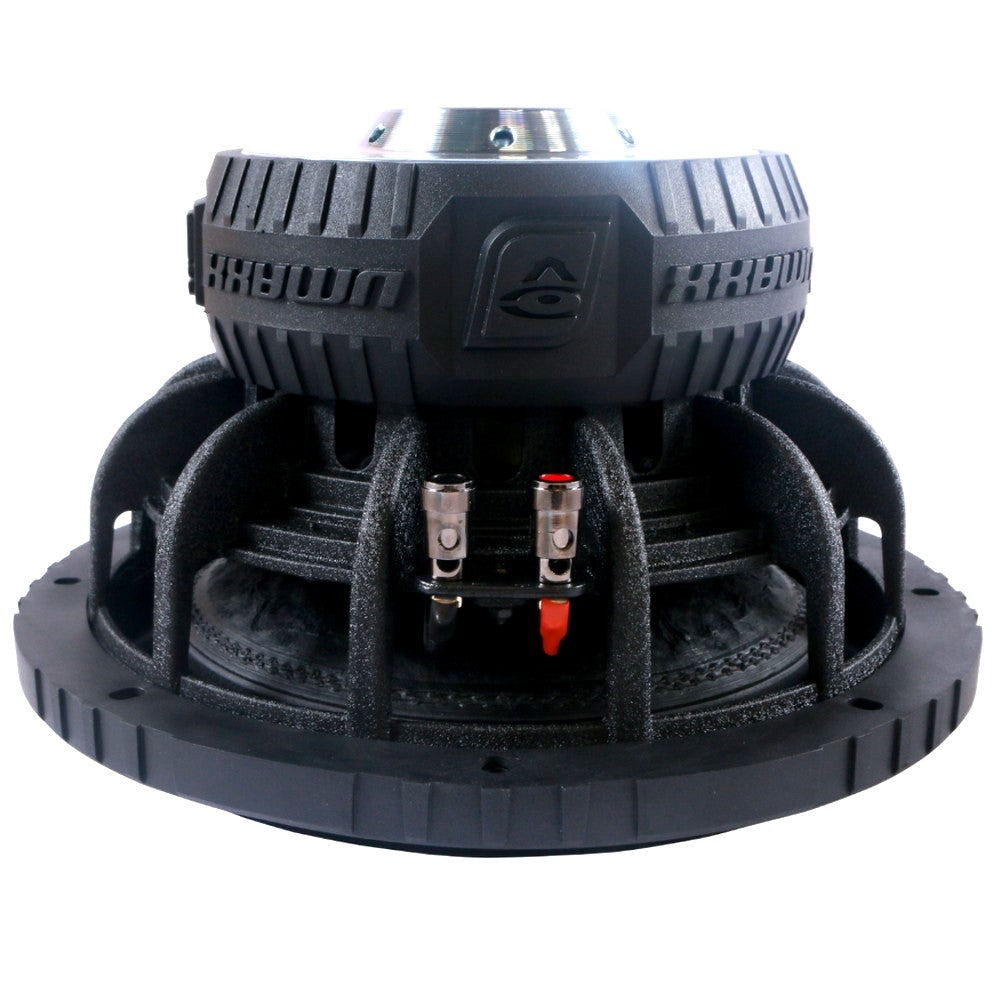

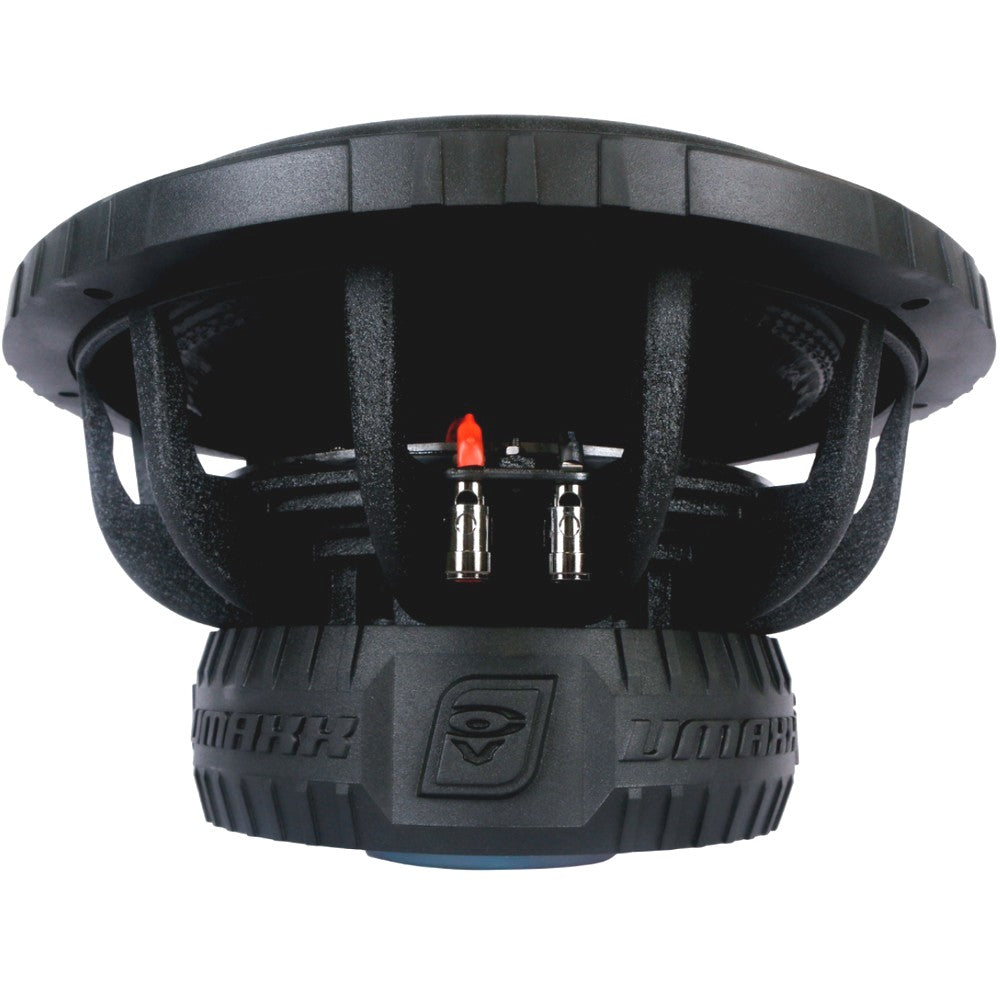

CERWIN VEGA 15" VMAXX SERIES 2 OHM DVC SUBWOOFER 3000W MAX - VMAX15D2

NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.

VMAX15D2 – 15" DUAL 2-Ohm High-Performance Subwoofer 3000W MAX / 1500W RMS

Features:
- Heavy Industrial Strength Aluminium Cast Frame
- Treated Semi-Pressed Pulped Cone
- Elevated Motor Structure for Increased Cooling
- Oversized Spider
- Black Coated 3-inch Voice Coil for Higher Thermal Capability
- Oversized Polished Black Chrome Distortion
- Polished Bumped Backplate
- Klippel Optimized Motor / Suspension Symmetry

Specifications:
- SPL (dB): 86.6
- Re(O)[series]: 2O/8O
- Qms: 3.98
- Qes: 1.005
- Qts: 0.803
- Fs(Hz): 31.48
- Vas(L): 94.907
- Cms(mm/N): 97.11
- Mms(g): 317.7
- Sd(m2): 0.083
- BL(T*M): 19.3
- Xmax(mm): 14
- Pwr(W) NOM/MAX: 1500RMS / 3000W
- Displacement: 0.15 ft 3" (4.24L)

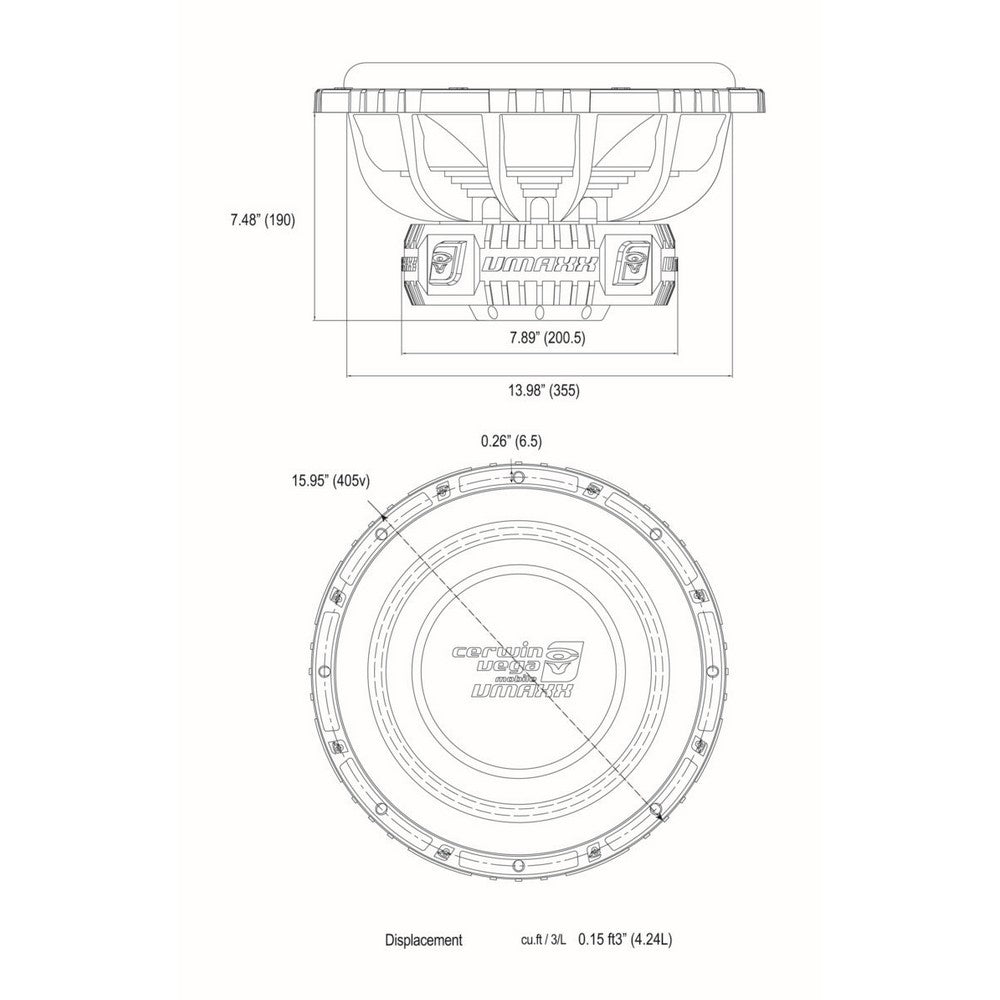

- Mounting Depth (D): 7.48" (190) in. (mm)
- Mounting Diameter (B): 13.98" (355) in. (mm)
- Screw Hole Diameter (C): 0.26" (6.5) in. (mm)
- Total Diameter (A): 15.95: (405) in. (mm)
