FITTING KIT TOYOTA HIGHLANDER 2014 - 2019 DOUBLE DIN (BLACK) - 95-8248B

NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.

Description
ISODouble-DINradio provision

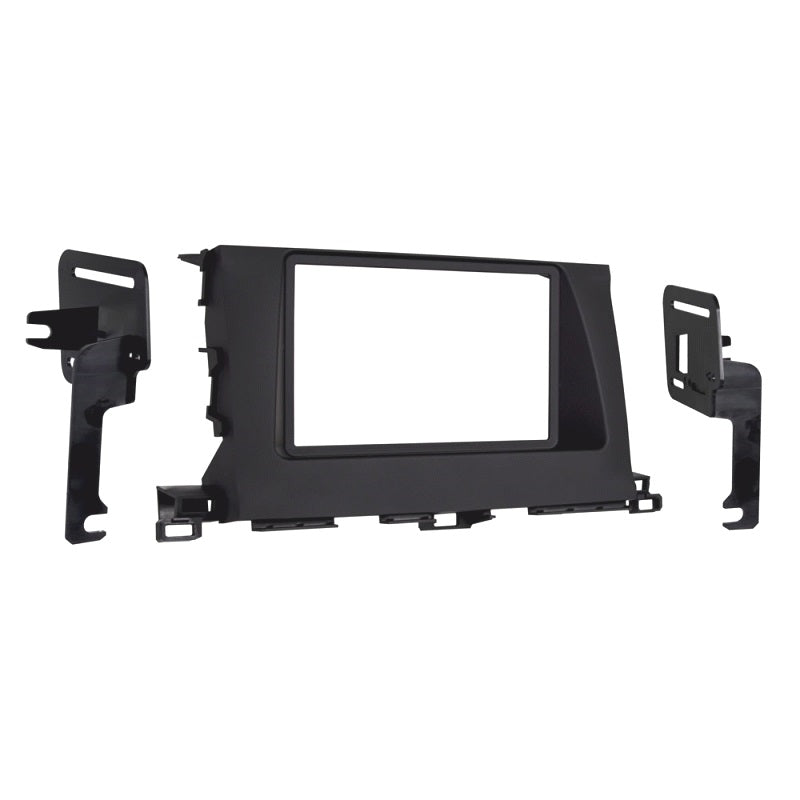

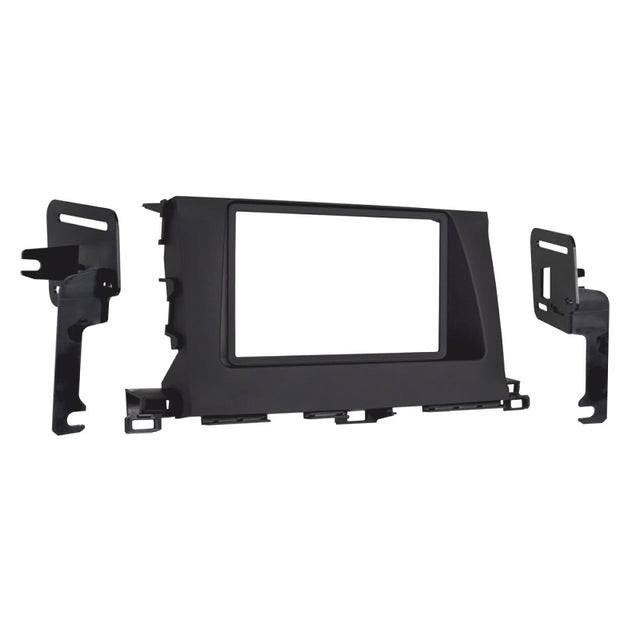

Stereo installation kit designed to fit any standard 4" tall aftermarket radio with an ISO-mount provision
Painted scratch-resistant matte black
Made from the highest qualityABSplastic for an original factory-like fit and finish
Includes brackets and hardware parts needed with detailed installation instructions

Note: This facia is designed for a LHD Vehicle. As such the clip on the heater control is slightly off center so does not line up to the factory dash. Please cut clip off to install
Wiring and Antenna Connections (sold separately)HarnessWH540
(Toyota plugs to ISO plugs)
AXTO-TY1
(For Amped system)

Harness with SWCCTSTY002.2
(Non Amped system, Toyota 28 Pin SWC plug, must purchaseCTMULTILEAD.2
for SWC retention)
CTSTY008.2
(Has Toyota 20 & 28 Pin harness, retains AUX, USB, Camera & Antenna, must purchaseCTMULTILEAD.2
for SWC retention)
CTSTY009.2
(For Amped JBL system, retains AUX, USB, Camera & Antenna, must purchaseCTMULTILEAD.2
for SWC retention)
CTSTY019.2
(2018 - 2019 Only, Retains 360 Degree camera, Amp & SWC, must purchaseCTMULTILEAD.2
to retain SWC)

Antenna AdapterTY10
(Toyota Aerial Adapter)

Steering Wheel ControlAXSWC
(Axxess Universal SWC adapter)
UNI-SWC.3
(Connects2 Universal SWC adapter)

Applications
ToyotaHighlander 2014 - 2019
