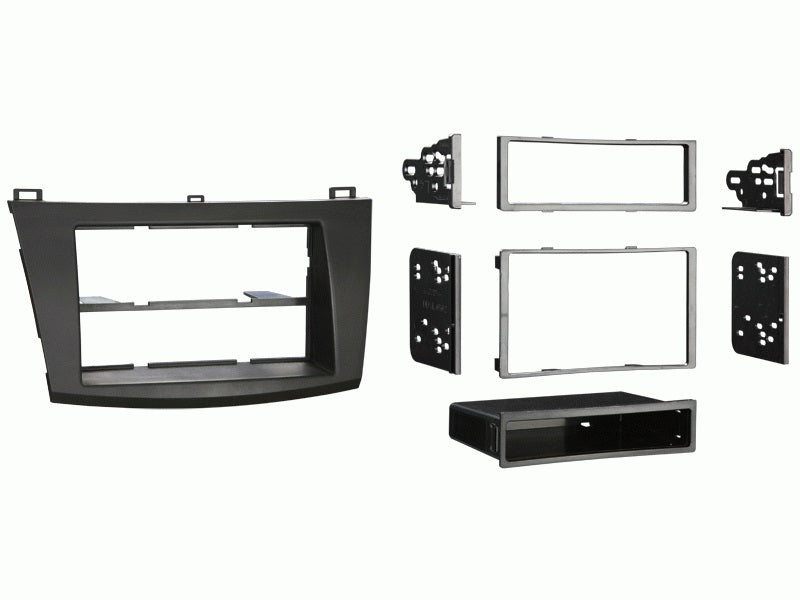

FITTING KIT MAZDA 3 , AXELA 2010 - 2014 DIN & DOUBLE DIN (BLACK) - 99-7514B

NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.

Description
ISO DIN Radio Provision with Pocket
ISO Double-DIN Radio Provision
Painted a scratch resistant matte black to match factory dash
Made from the highest qualityABSplastic for an original factory-like fit and finish
Includes brackets and hardware parts needed with detailed installation instructions

Harness & Antenna Connections (sold separately)
Harness
WH562
(Mazda plug to ISO plugs)
WH573
(Jap Axela 20S Models with factory reverse camera, please let customer know they must modify harness to suit vehicle)

Harness with SWCCTSMZ002.2
(Date, Time and Temperature Display are NOT Supported, must purchase CTMULTILEAD.2
for SWC retention)
CTSMZ006.2
(For Non Amped system, with Vehicle settings control, must use CTMULTILEAD.2
to retain SWC)
CTSMZ005.2
(For BOSE Amp system, with Vehicle settings control, must use CTMULTILEAD.2
to retain SWC)

Antenna Adapter
HD10
(Honda Aerial Adapter)

Steering Wheel ControlAXSWC
(Axxess Universal SWC Adapter)
UNI-SWC.3
(Connects2 Universal SWC Adapter, must purchase CTMULTILEAD.2
for SWC retention)

Note:
**Please let customer know they must modify harness WH573 to suit vehicle, test harness before installing radio**

Applications
Mazda 3 2010 - 2014
Axela 2010 - 2014
