SANTINT | SKU:
FORMULA-AO480

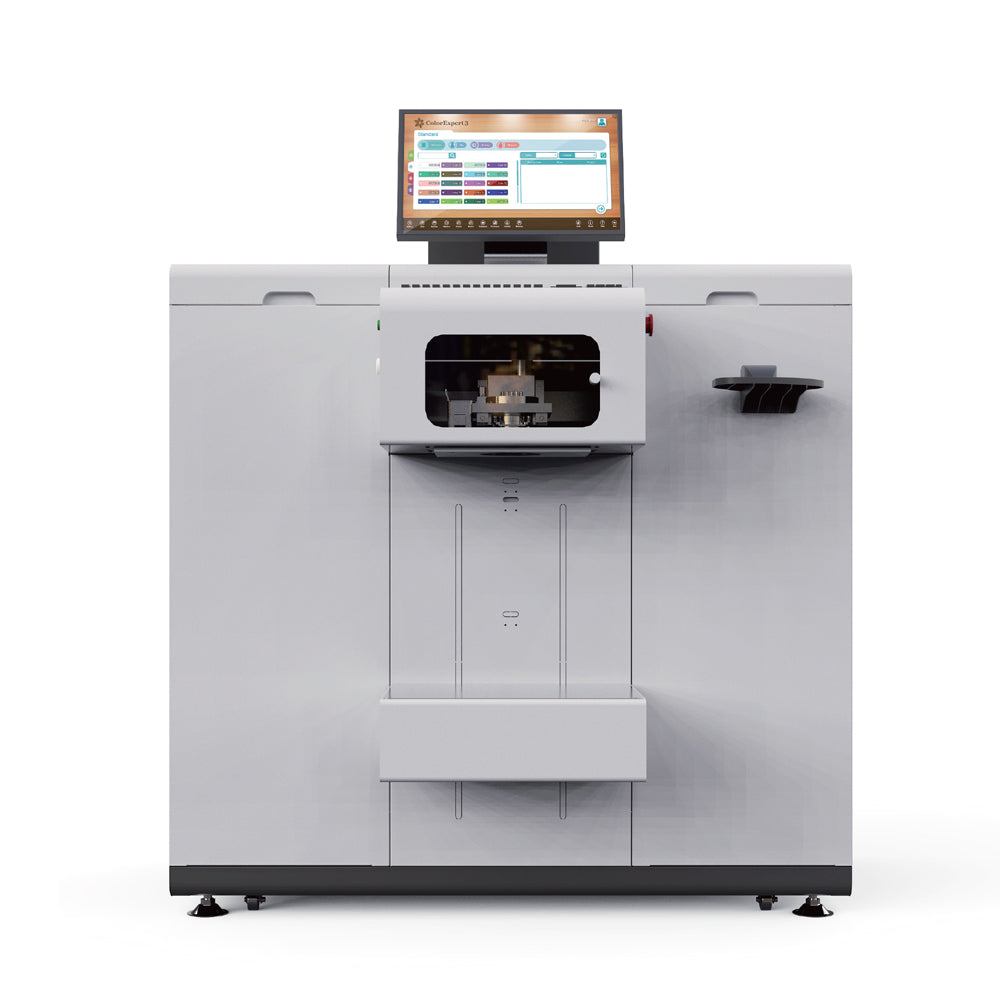

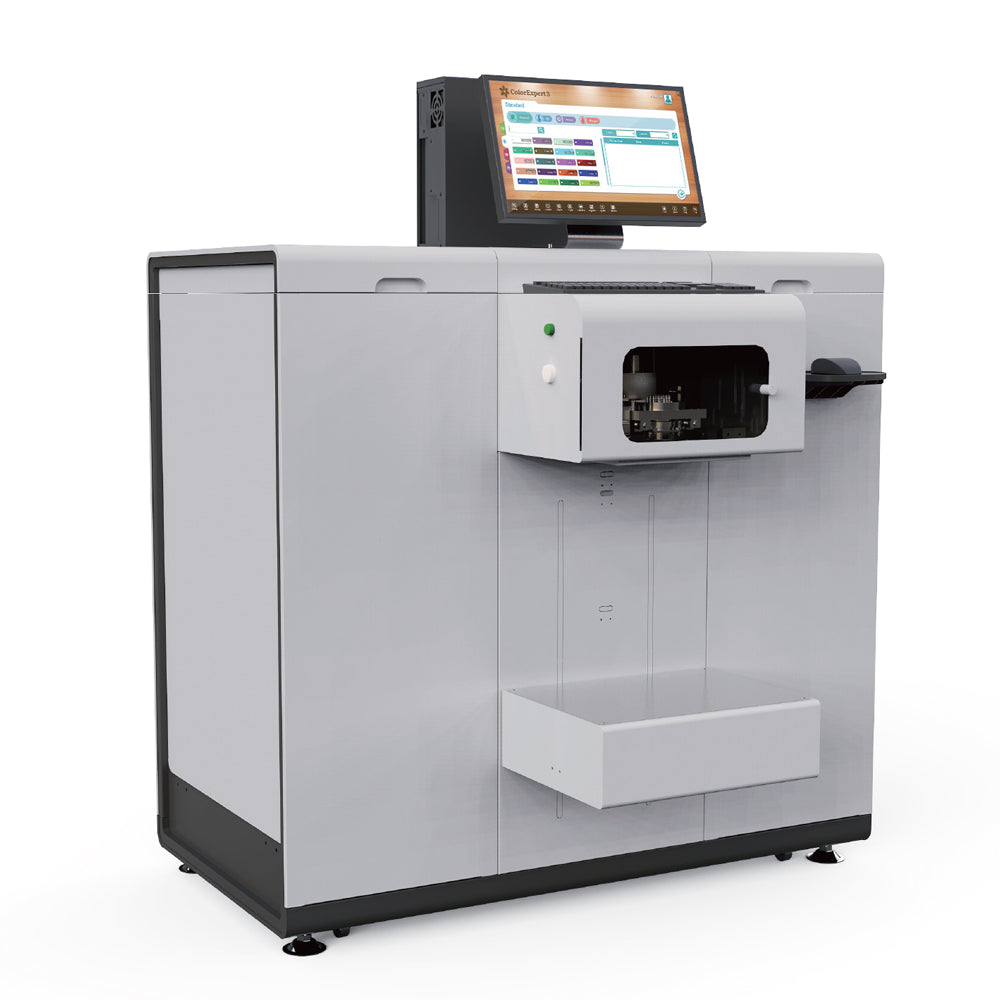

SANTINT AUTOMATIC PAINT DISPENSER AO480 16 CANNISTERS - AO480
Regular price
$46,799.00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Couldn't load pickup availability
NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.
High Efficiency:Single Pump: 480ml/min Simultaneously dispensing up to 8 colorants
Main Applications:Medium to high efficiency applications, including deco paint store, tinting center, industrial paint dispensing, etc.
Features:
• Adopt stable and reliable piston pump technology: Simple, easy to maintain and stable accuracy. Minimum Shot: 1/384Y(0.077ml).
• Abundant canister specifications are optional: Meet needs of diversification.
• Circulating Humidification System: Reinforced sealing mechanism. Can be customized for solvent liquid.
• Optional Patented Sealing Cap: High leakproofness, minimizing VOC volatilization and colorant dry. Patented breathing valves ensure the accuracy of dispensing.
Parameters
Dispensing Type 8 channels simultaneous (max)
Minimum Shot 1/384Y(0.077ml)*It depends on the product property
Efficiency of Single Pump 480ml/min (1500ml/min when＜70ml)*It depends on the product property
No. of Canisters Up to 32
Canister Type POM: 2.5L/4.5L/6L/12L/22L Stainless Steel: 6L/12L/22L（Optional）External storage cans with custom capacity
Machine Dimension (WxDxH) 1284 x 1060 x 1237 mm (S) 1694 x 1060 x 1237 mm (M) 2072 x 1060 x 1245 mm (L)
Packing Dimension (WxDxH) 1340 x 1050 x 1415 mm (S) 1760 x 1050 x 1470 mm (M) 2140 x 1055 x 1415 mm (L) Customization version subject to actual dimension
Rated Power 600W
Power Supply 220V/110V,50Hz/60Hz
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.
High Efficiency:Single Pump: 480ml/min Simultaneously dispensing up to 8 colorants
Main Applications:Medium to high efficiency applications, including deco paint store, tinting center, industrial paint dispensing, etc.
Features:
• Adopt stable and reliable piston pump technology: Simple, easy to maintain and stable accuracy. Minimum Shot: 1/384Y(0.077ml).
• Abundant canister specifications are optional: Meet needs of diversification.
• Circulating Humidification System: Reinforced sealing mechanism. Can be customized for solvent liquid.
• Optional Patented Sealing Cap: High leakproofness, minimizing VOC volatilization and colorant dry. Patented breathing valves ensure the accuracy of dispensing.
Parameters
Dispensing Type 8 channels simultaneous (max)
Minimum Shot 1/384Y(0.077ml)*It depends on the product property
Efficiency of Single Pump 480ml/min (1500ml/min when＜70ml)*It depends on the product property
No. of Canisters Up to 32
Canister Type POM: 2.5L/4.5L/6L/12L/22L Stainless Steel: 6L/12L/22L（Optional）External storage cans with custom capacity
Machine Dimension (WxDxH) 1284 x 1060 x 1237 mm (S) 1694 x 1060 x 1237 mm (M) 2072 x 1060 x 1245 mm (L)
Packing Dimension (WxDxH) 1340 x 1050 x 1415 mm (S) 1760 x 1050 x 1470 mm (M) 2140 x 1055 x 1415 mm (L) Customization version subject to actual dimension
Rated Power 600W
Power Supply 220V/110V,50Hz/60Hz
