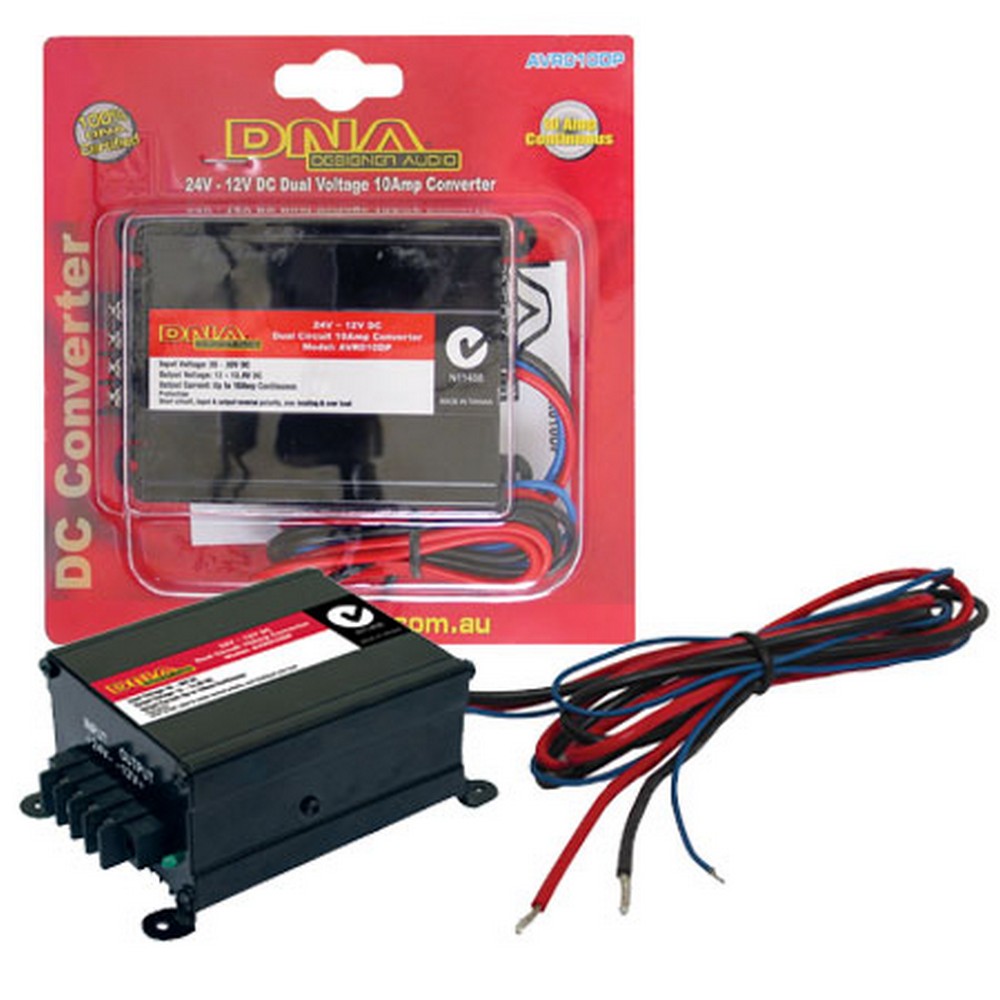

VOLTAGE REDUCER 24V TO 12V @ 10 AMPS CONTINUOUS DUAL OUTPUT - AVR010DP

NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.


24 Volt DC to 12 volt DC voltage reducer with dual outputs. Fitted with 2 independent 12VDC outputs. Output 1: using the terminals on the side of the case. Output 2: using the 3 wires. Red: 12VDC postive output Black: negative output Blue: 24VDC trigger wire for activating the circuit. Input DC voltage range: DC20~30V DCOutput voltage range: 12V~13.8VContinuous power: 10 AmpsPeak power: 15 AmpsNo load current draw: 20mAMax. power efficency: >90%Cooling: Air convectionInput polarity reverse: Diode protectionOutput polarity reverse: Circuit protectionOver heating: Circuit protectionOver load: Circuit protectionOutput short: Circuit protectionFuse: 15 AmpsDimension (LxWxH): 90 x 73 x 45mmWeight: 330g
