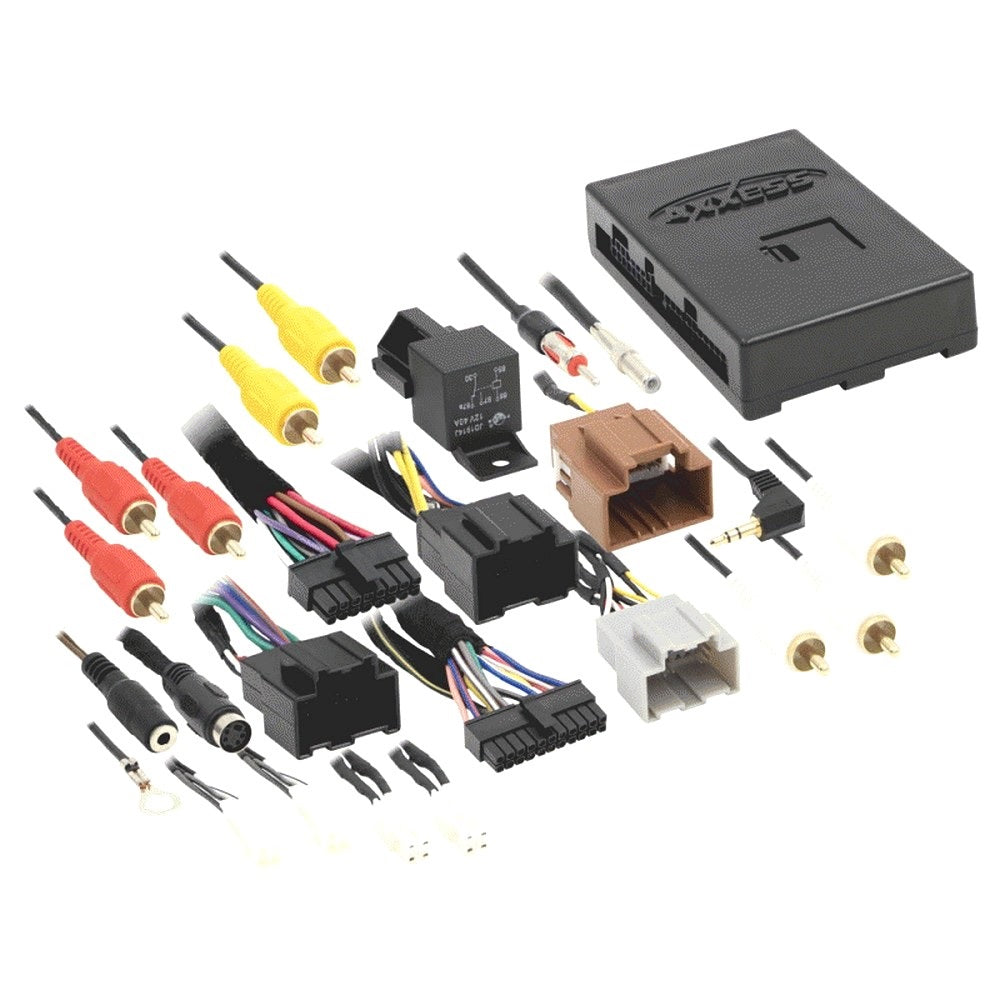

AMPLIFIED INTERFACE GM WITH SWC 2006 - ON - AXDIS-GMLN29

NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.

Description
Provides accessory power (12-volt 10-amp)
Retains R.A.P. (retained accessory power)
Provides NAV outputs (parking brake / reverse / speed sense)
Retains chimes
Retains audio controls on the steering wheel
Retains OnStar / OE Bluetooth
Adjustable OnStar level
Retains the factory AUX-IN jack
Retains the factory backup camera
Retains RSE (rear seat entertainment)
Retains SAT (satellite radio)
Can be used in non-amplified or analog/digital amplified models
Retains balance and fade (excluding digital amplified models)
Includes an antenna adapter
Micro "B" USB updatable

Applications
CADILLAC
DTS2006-2011 (5) See notes below

Escalade / Escalade ESV& EXT 2007-2011

CHEVROLET
Captiva Sport 2012-2015 (2)See notes below

Equinox 2007-2009
Silverado 2500 / 3500 2014 (2)(3) See notes below

Silverado (new body) 2007-2013 (2)(3) See notes below

GMC
Acadia 2007-2016
Acadia Limited 2017
Yukon / Yukon XL 2007-2014 (2)(4) See notes below

HUMMER
H2 2008-2009 (5)See notes below

Suzuki
XL-7 2007-2009

PLEASE NOTE
(1) For 2013-2015 models equipped with NAV use the AX-GMLAN44-SWC.
(2) For 2012-up models equipped with NAV use the AX-GMLAN44-SWC.
(3) These vehicles have a digital amp option. Please reference the Service Parts Identification sticker located in the glove box for the RPO code Y91. If Y91 is present then the vehicle is equipped with a digital amplifier.
(4) These vehicles have a digital amp option. Please reference the Service Parts Identification sticker located in the glove box for the RPO code STZ or Y91. If STZ or Y91 is present then the vehicle is equipped with a digital amplifier.
(5) These vehicles are standard for a digital amplifier.
