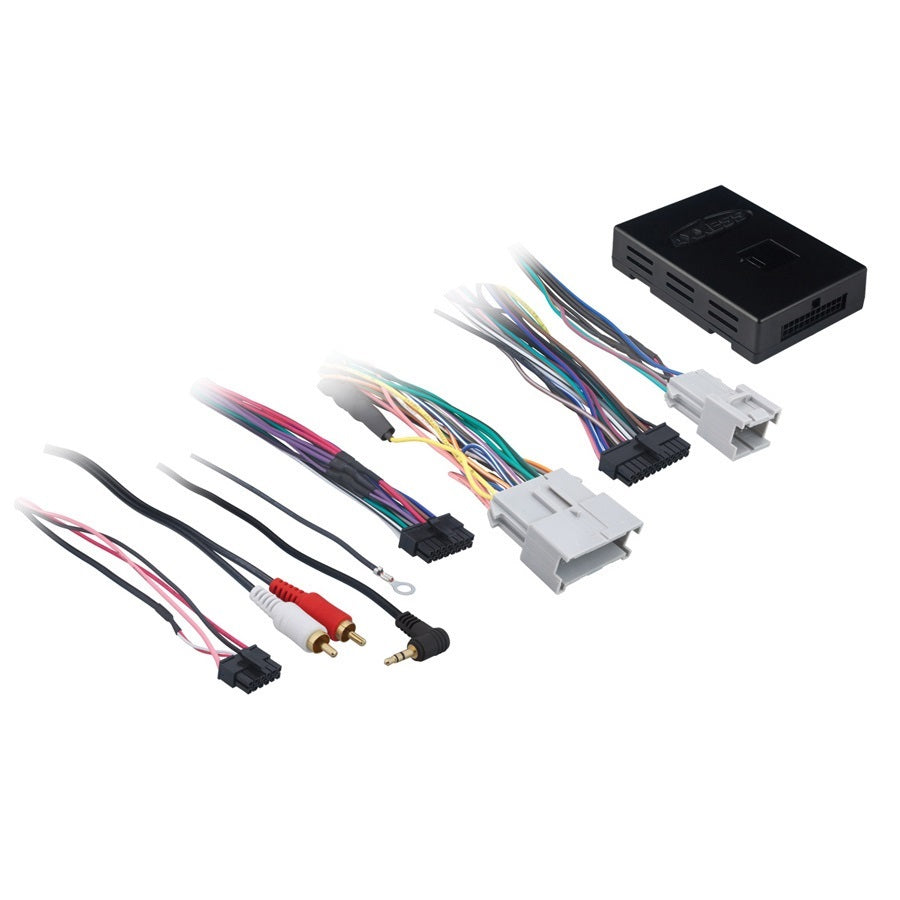

AXXESS AMPLIFIED DATA INTERFACE GM 2000 - 2013 MULTI VEHICLE - AXGM-014

NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.

Description
Provides accessory power (12-volt 10-amp)
Maintains the retained accessory power (R.A.P.) feature
Can be used in non-amplified, or analog/digital amplified models
Retains warning chimes
Provides NAV outputs (parking brake, reverse, speed sense)
Pre-wired ASWC-1 harness (ASWC-1 sold separately)
Retains OnStar/OE Bluetooth
Adjustable volume for chimes and OnStar
Retains balance and fade (1)
Retains RSE (rear seat entertainment) (2)
Retains SAT (satellite radio)
Micro “B” USB updatable

(1) Excluding digital amplified models
(2) Only for models that have the RSE controlled through the factory radio. Not for models that have an external power button at the RSE.

Applications
CadillacEscalade 2003-2006 (2)
Escalade ESV 2003-2006
Escalade EXT 2003-2006

ChevroletAvalanche 2003-2006 (1)
Cavalier 2000-2005
Colorado 2004-2012
Corvette 2005-2013
Express 2003-2007
Impala 2000-2005
Kodiak 2003-2009
Malibu 2001-2003
Malibu Classic 2004-2005
Monte Carlo 2000-2005
Silverado Classic 2007 (1)
Silverado 2003-2006 (1)
SSR 2003-2006 (1)
Suburban 2003-2006 (1)
Tahoe 2003-2006 (1)
Trailblazer 2007-2009
Trailblazer 2002-2006 (1)
Uplander 2005-2008

GMCCanyon 2004-2012
Envoy 2007-2009
Envoy 2002-2006 (1)
Savanna 2003-2007
Sierra Classic 2007 (1)
Sierra 2003-2006 (1)
TopKick 2005-2009
Yukon 2003-2006 (1)

HummerH2 2003-2007 (2)
H3/H3T 2006-2010

PontiacGrand Am 2001-2005
Grand Prix 2004-2008
Montana SV6 2005-2008
Sunfire 2000-2005

Notes
(1) These vehicles have a digital amplifier option. Please refer to the Service Parts Identification sticker located in the glove box (for all models except for the Buick Regal which is on the spare tire cover). If the codes UQA or Y91 are present then you have a digital amplifier.
