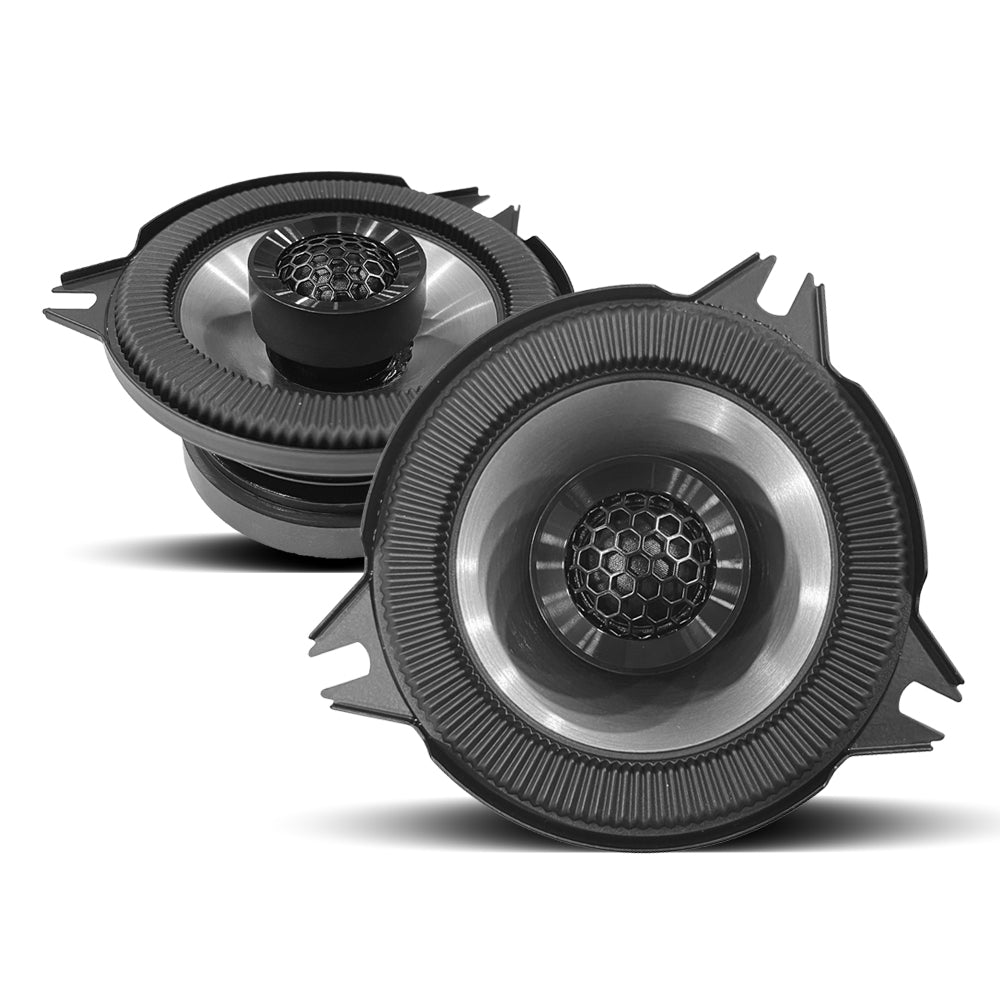

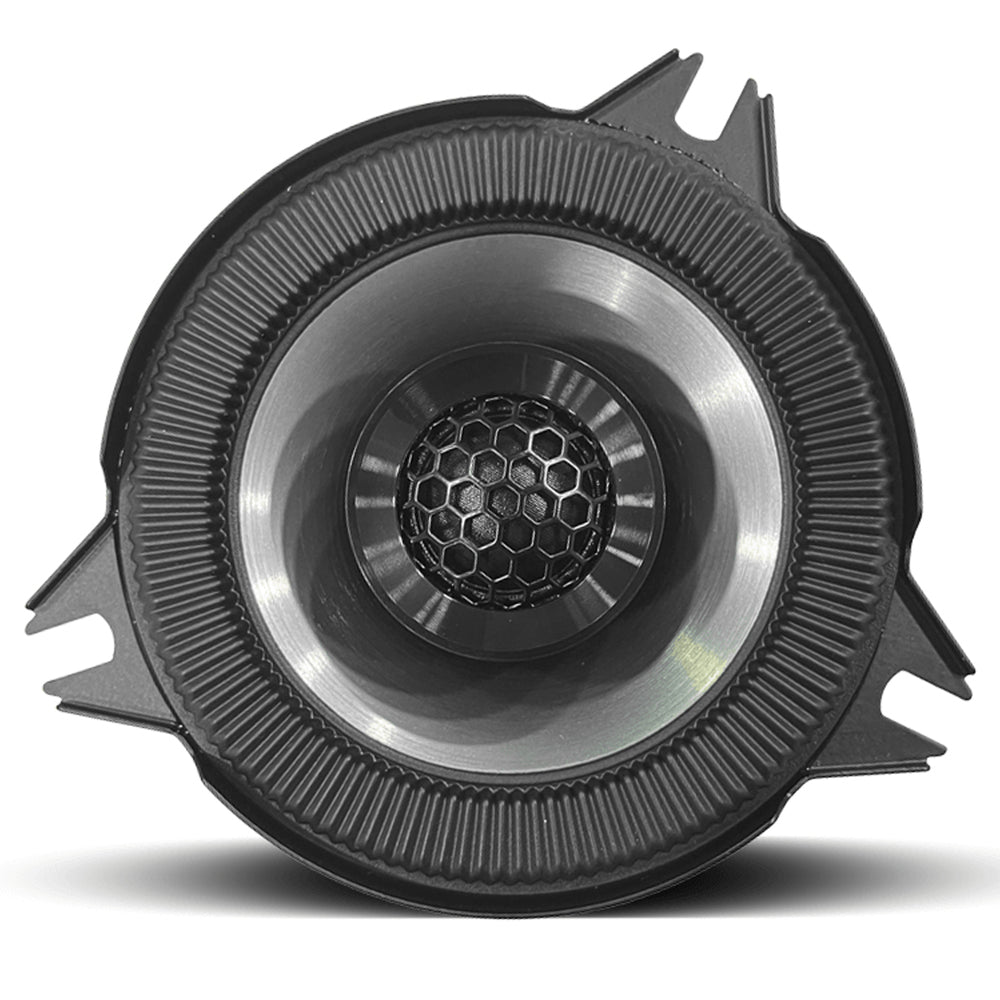

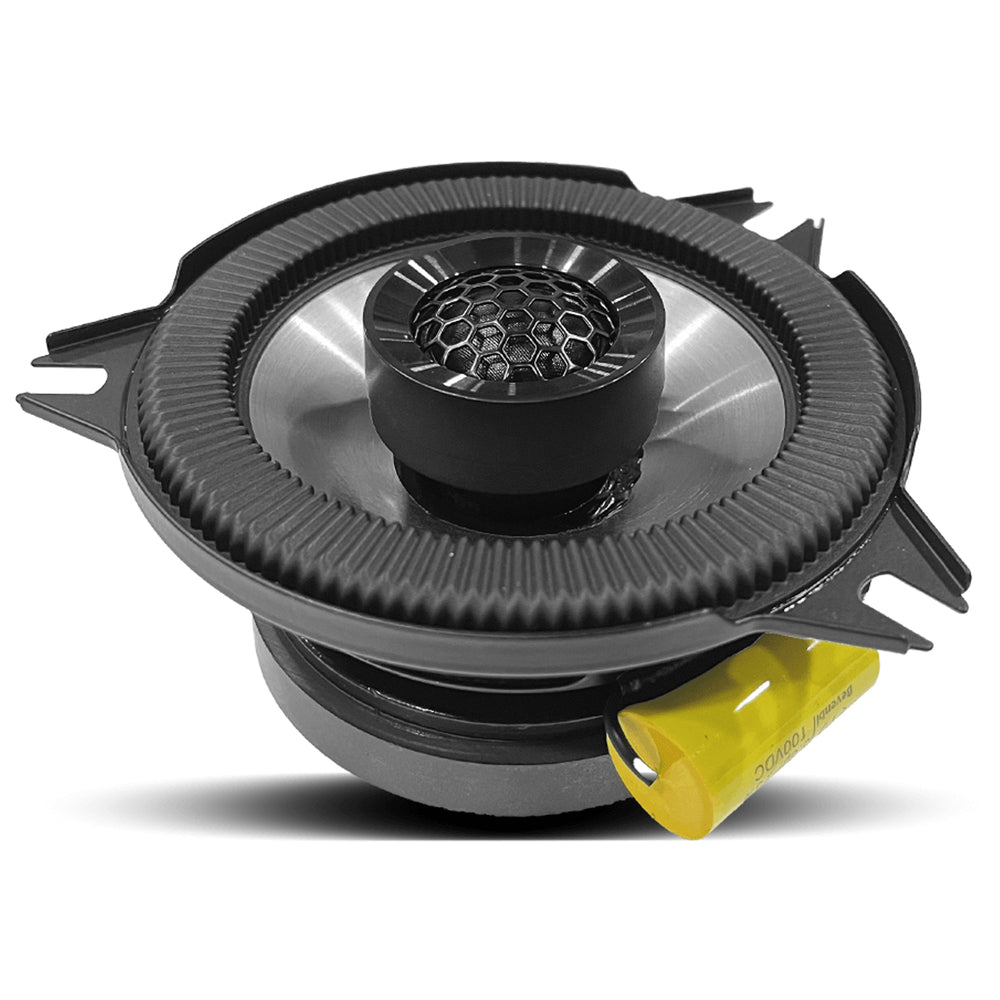

ALPINE (BASSREV-SERIES) 4" COAXIAL SPEAKER 40W RMS 2-WAY - BRV-S40

NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.

Features:
4" BassRev™ Coaxial Speaker Set (4" woofer w/coaxial 1" tweeter)
Designed to pair with Alpine OPTIM8® using OPTIM™ Sync for maximum output
Upgraded bass performance when tuned with OPTIM8® (Alpine Proprietary OPTIM™Sync Algorithm)
Engineered for increased mid and low-end performance
HEDGE™ Surround (High Excursion Design Gathered Edge) increases low-end output and extension
Unique lapel cone shape enables higher excursion vs. traditional cones
Polypropylene + mica cone for increased rigidity and cleaner response
Ferrite magnet motor for stable performance and reliable power handling
Gun-metal chemical coating for a premium, durable finish
OEM-friendly fitment with shallow profile for tight doors and dash locations

*BassRev tuning requires Alpine OPTIM8® DSP/Amplifier using Alpine OPTIM™Sync Technology.

Tech Specs:
Woofer Size: 4"
Tweeter Size: 1" (Coaxial)
Power Handling: 40W RMS / 120W Peak
Frequency Response (w/*BassRev Tuning ON): 67Hz - 20kHz
Frequency Response (w/*BassRev Tuning OFF): 75Hz - 20kHz
Sensitivity: 84dB (1W/1m)
Impedance: 4Ω

Mounting Depth: 1-3/4" (woofer)
Cone Material: Polypropylene (woofer), Polyester cloth-dome (tweeter)
Surround Material: Rubber HEDGE™ Design (woofer)
Voice Coil Diameter: 25mm (woofer), 20mm (tweeter)
Magnet Size: 75mm (woofer)
Magnet Material: Ferrite (woofer), Neodymium (tweeter)
Frame Material: Steel (woofer)
