CONNECTS2 | SKU:
FORMULA-CAM-FT2
REVERSE CAMERA FIAT DUCATO REPLACEMENT BRAKE LIGHT REVERSE CAMERA 2006 - 2022 - CAM-FT2
Regular price
$619.00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Couldn't load pickup availability
NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.
Description

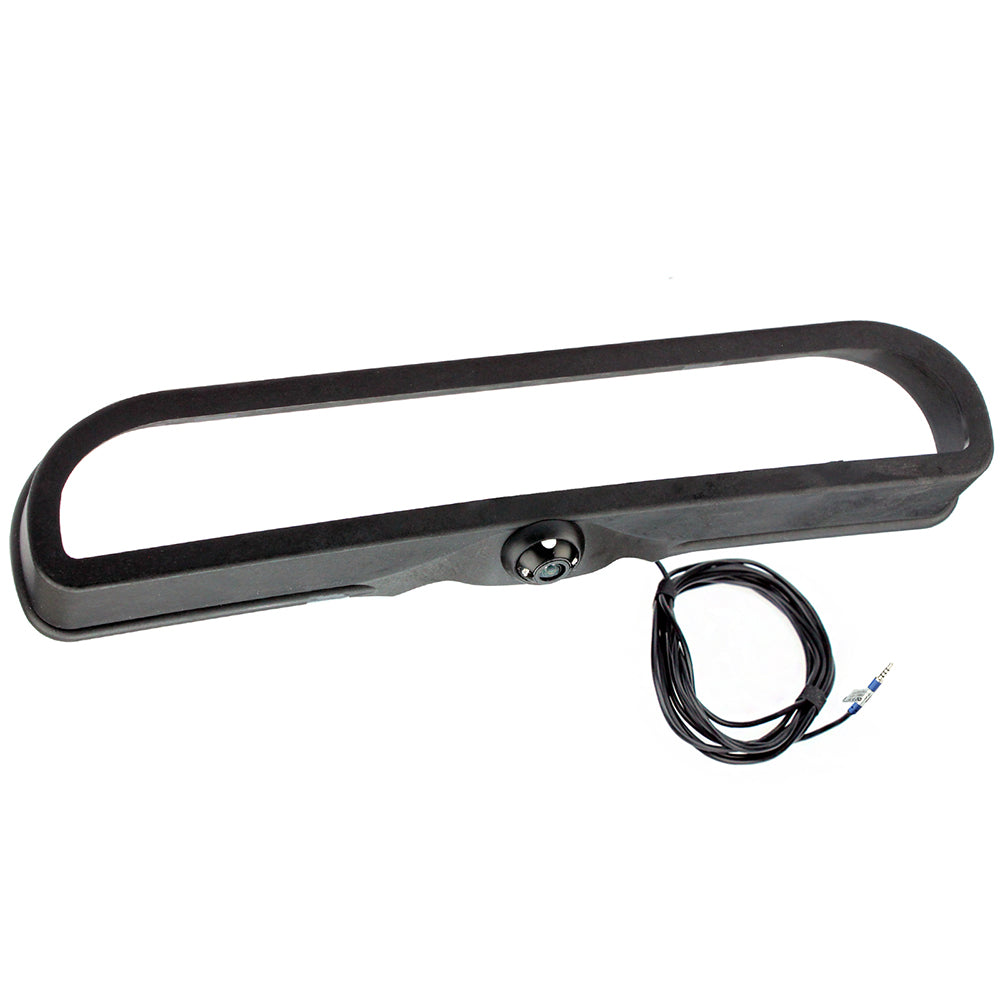

The CAM-FT2 allows you to add a reverse camera to the vehicle while retaining your original third brake light for use on 2006 to the current 8 Series Fiat Ducato. The camera features a ¼” Aptina-ASX340 image sensor, 6G Lens Element, 420 TV Lines and 170 degree viewing angle. The CAM-FT2 camera collar sits between the original brake light and body of the vehicle maintaining the vehicle’s aesthetic look while adding safety.
Product Specifications
Image Sensor: 1/4” Aptina – ASX340
TV Lines: 420
Resolution: 720 x 480
Minimum Illumination: 0 Lux
TV System: NTSC
Waterproof Rating: IP68
Viewing Angle: 170 (D) 140 (H) 85 (V) Degrees
Image: Mirror
Electronic Shutter: 30fps
Gamma Correction: 0.45
Enhanced Performance In Low Light: Yes
Video Output: 1.0V p-p 75ohm
Operating Voltage: 12V DC (Negative Ground)
Current Consumption: 43mA @ 13.8V
Operating Temperature: -30 Degrees C to +75 Degrees C
Applications
Fiat Ducato 2006 - 2022
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.
Description
The CAM-FT2 allows you to add a reverse camera to the vehicle while retaining your original third brake light for use on 2006 to the current 8 Series Fiat Ducato. The camera features a ¼” Aptina-ASX340 image sensor, 6G Lens Element, 420 TV Lines and 170 degree viewing angle. The CAM-FT2 camera collar sits between the original brake light and body of the vehicle maintaining the vehicle’s aesthetic look while adding safety.
Product Specifications
Image Sensor: 1/4” Aptina – ASX340
TV Lines: 420
Resolution: 720 x 480
Minimum Illumination: 0 Lux
TV System: NTSC
Waterproof Rating: IP68
Viewing Angle: 170 (D) 140 (H) 85 (V) Degrees
Image: Mirror
Electronic Shutter: 30fps
Gamma Correction: 0.45
Enhanced Performance In Low Light: Yes
Video Output: 1.0V p-p 75ohm
Operating Voltage: 12V DC (Negative Ground)
Current Consumption: 43mA @ 13.8V
Operating Temperature: -30 Degrees C to +75 Degrees C
Applications
Fiat Ducato 2006 - 2022
