CERWIN VEGA | SKU:
FORMULA-CVPM1000.1D

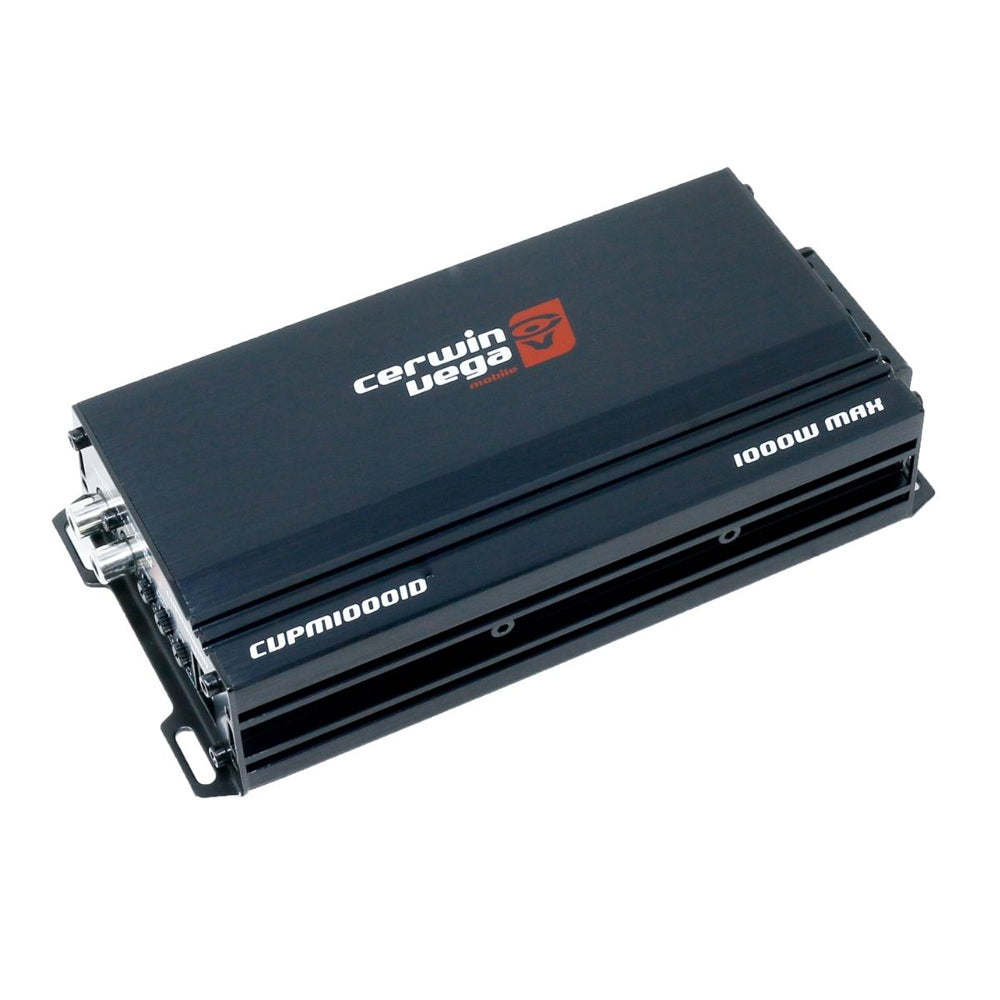

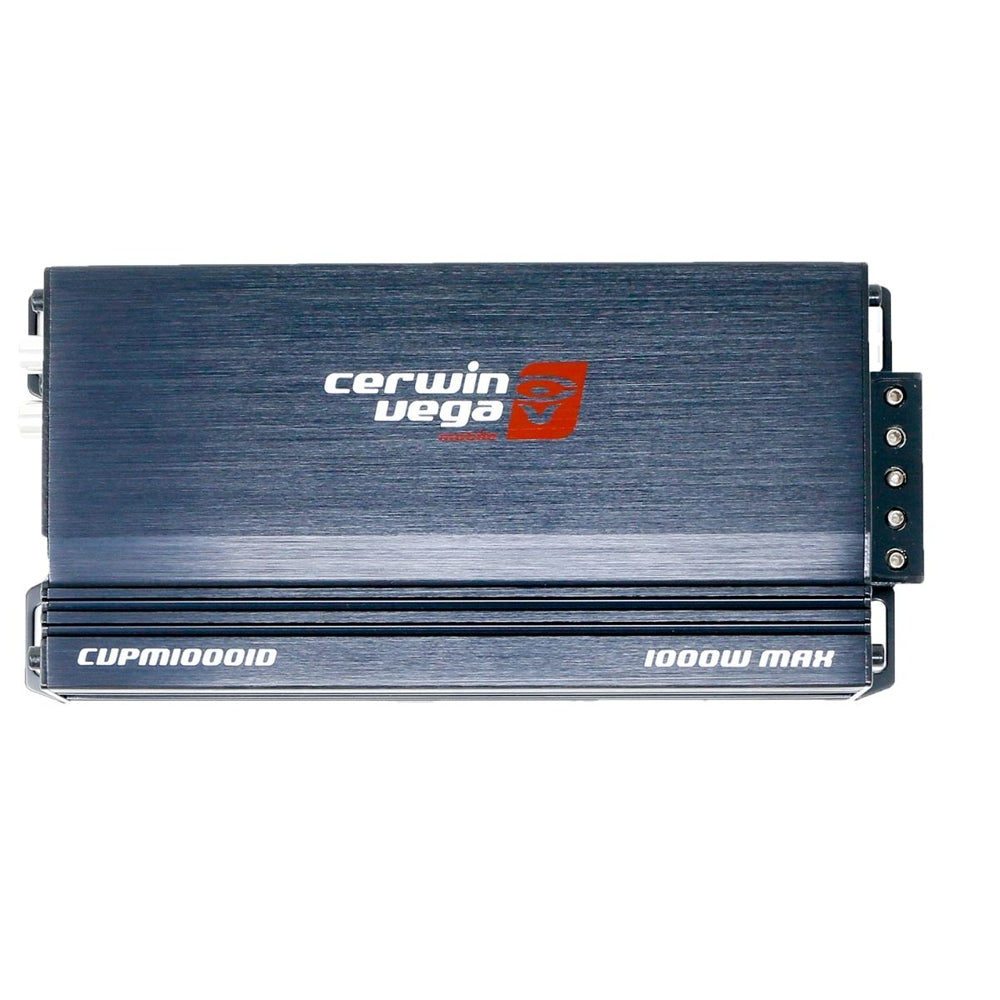

CERWIN VEGA AMPLIFIER CVP SERIES MONO 350W RMS @ 4OHM / 500W RMS @ 2OHM - CVPM1000.1D
Regular price
$509.00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Couldn't load pickup availability
NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.
CVP Mini-Series 1-Channel Mono Block Class-D Car Amplifier
Power Rating (RMS)
RMS POWER PER CHANNEL 4Ω 310W X 1
RMS POWER PER CHANNEL 2Ω 500W X 1
WATER RESISTANCE - YES
FREQUENCY RESPONSE (HZ): 35HZ-500HZ
Power Supply
Power Supply: Full WPM
Power Supply Threshold: 10.0V-17.0V (DC)
Idle Current: (0.7A)
Distortion
THD 4 (1KHZ @4Ω): 0.01%
S/N RATIO (A WEIGHTED @1W): -85dBA
S/N RATIO (A WEIGHTED @FP): -101.1dBA
Input Sensitivity
Hi/Low Level Input: 0.15mV-6.0V
Input Impedance
Low Level Input: 20KΩ
Output Stage
Output Impedance: 0.0297Ω
Damping Factor (50Hz@4Ω): >70
Bandwidth (-3db): 10Hz-45KHz
Crossover (1-12dB/Oct)
Variable High-Pass:
Variable low-Pass: 35Hz-500Hz
Fuse Rating
2x30A
Dimensions
Length x Width x Height: 7.64”x3.7”x1.47” (194mm x 95mm x 37.3mm)
CVP Mini-Series 1-Channel Mono Block Class-D Car Amplifier
Power Rating (RMS)
RMS POWER PER CHANNEL 4Ω 310W X 1
RMS POWER PER CHANNEL 2Ω 500W X 1
WATER RESISTANCE - YES
FREQUENCY RESPONSE (HZ): 35HZ-500HZ
Power Supply
Power Supply: Full WPM
Power Supply Threshold: 10.0V-17.0V (DC)
Idle Current: (0.7A)
Distortion
THD 4 (1KHZ @4Ω): 0.01%
S/N RATIO (A WEIGHTED @1W): -85dBA
S/N RATIO (A WEIGHTED @FP): -101.1dBA
Input Sensitivity
Hi/Low Level Input: 0.15mV-6.0V
Input Impedance
Low Level Input: 20KΩ
Output Stage
Output Impedance: 0.0297Ω
Damping Factor (50Hz@4Ω): >70
Bandwidth (-3db): 10Hz-45KHz
Crossover (1-12dB/Oct)
Variable High-Pass:
Variable low-Pass: 35Hz-500Hz
Fuse Rating
2x30A
Dimensions
Length x Width x Height: 7.64”x3.7”x1.47” (194mm x 95mm x 37.3mm)
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.
CVP Mini-Series 1-Channel Mono Block Class-D Car Amplifier
Power Rating (RMS)
RMS POWER PER CHANNEL 4Ω 310W X 1
RMS POWER PER CHANNEL 2Ω 500W X 1
WATER RESISTANCE - YES
FREQUENCY RESPONSE (HZ): 35HZ-500HZ
Power Supply
Power Supply: Full WPM
Power Supply Threshold: 10.0V-17.0V (DC)
Idle Current: (0.7A)
Distortion
THD 4 (1KHZ @4Ω): 0.01%
S/N RATIO (A WEIGHTED @1W): -85dBA
S/N RATIO (A WEIGHTED @FP): -101.1dBA
Input Sensitivity
Hi/Low Level Input: 0.15mV-6.0V
Input Impedance
Low Level Input: 20KΩ
Output Stage
Output Impedance: 0.0297Ω
Damping Factor (50Hz@4Ω): >70
Bandwidth (-3db): 10Hz-45KHz
Crossover (1-12dB/Oct)
Variable High-Pass:
Variable low-Pass: 35Hz-500Hz
Fuse Rating
2x30A
Dimensions
Length x Width x Height: 7.64”x3.7”x1.47” (194mm x 95mm x 37.3mm)
CVP Mini-Series 1-Channel Mono Block Class-D Car Amplifier
Power Rating (RMS)
RMS POWER PER CHANNEL 4Ω 310W X 1
RMS POWER PER CHANNEL 2Ω 500W X 1
WATER RESISTANCE - YES
FREQUENCY RESPONSE (HZ): 35HZ-500HZ
Power Supply
Power Supply: Full WPM
Power Supply Threshold: 10.0V-17.0V (DC)
Idle Current: (0.7A)
Distortion
THD 4 (1KHZ @4Ω): 0.01%
S/N RATIO (A WEIGHTED @1W): -85dBA
S/N RATIO (A WEIGHTED @FP): -101.1dBA
Input Sensitivity
Hi/Low Level Input: 0.15mV-6.0V
Input Impedance
Low Level Input: 20KΩ
Output Stage
Output Impedance: 0.0297Ω
Damping Factor (50Hz@4Ω): >70
Bandwidth (-3db): 10Hz-45KHz
Crossover (1-12dB/Oct)
Variable High-Pass:
Variable low-Pass: 35Hz-500Hz
Fuse Rating
2x30A
Dimensions
Length x Width x Height: 7.64”x3.7”x1.47” (194mm x 95mm x 37.3mm)
