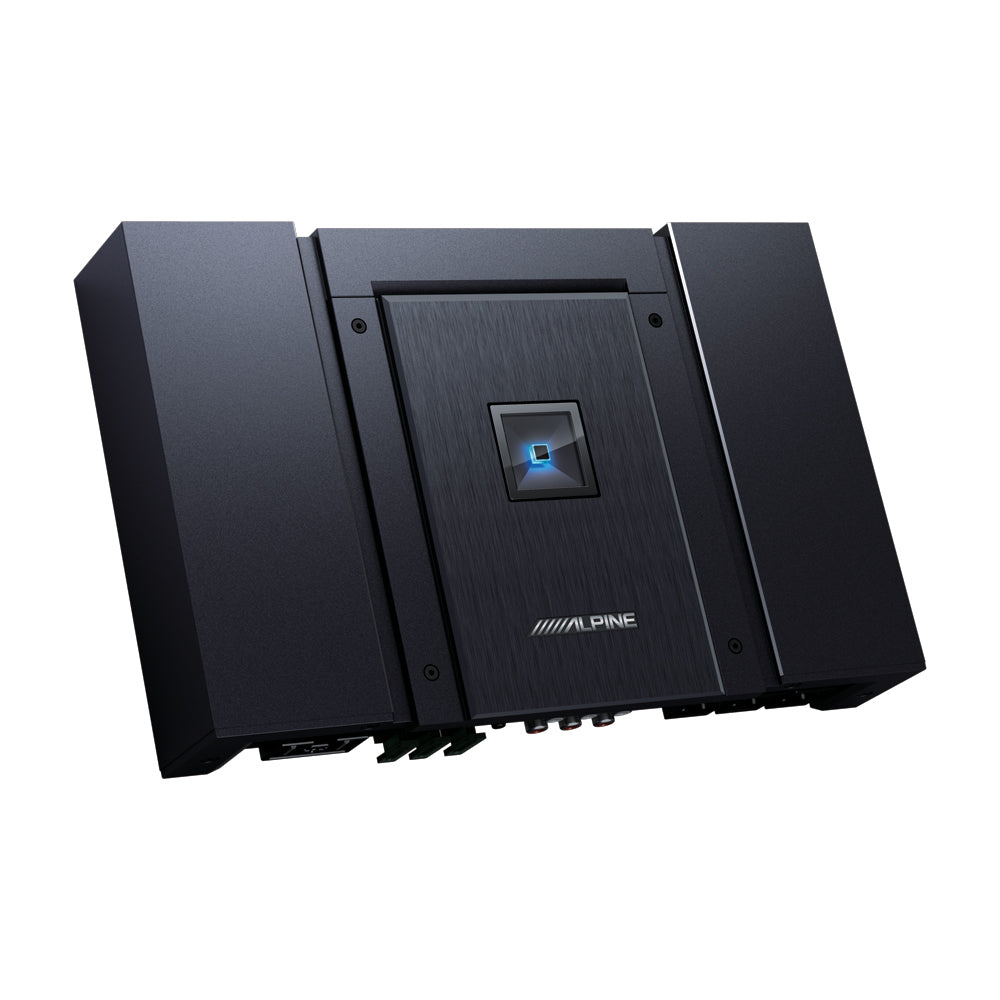

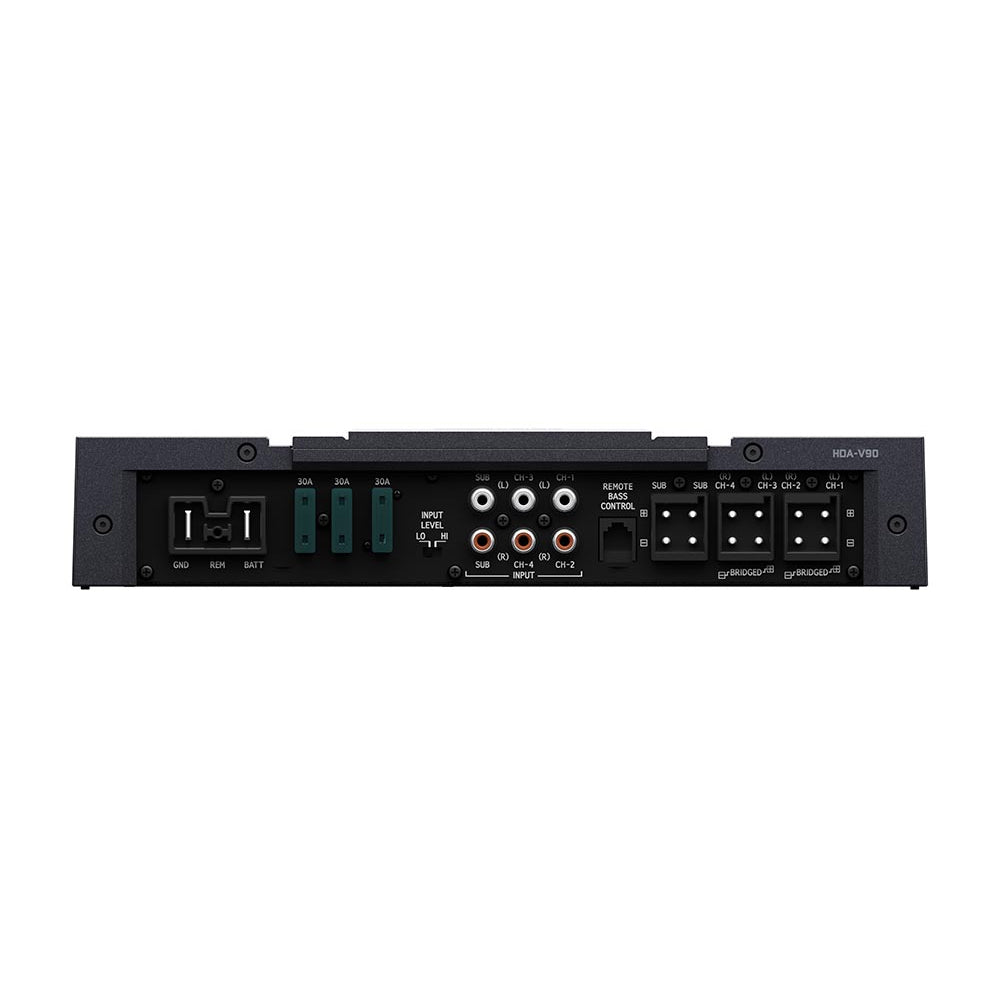

ALPINE (STATUS SERIES) HI-RES AMP 5 CH 75WRMS x 4 + 300W x 1 (4OHM) / 100WRMS x 4 + 500W x 1 (2OHM) - HDA-V90

NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.

Alpine Introduces the all-new Alpine Status sound system: using the same engineering and design concepts drawn from the third generation, Ultra High-Resolution AlpineF#1Status system, Alpine created “Alpine Status” to achieve High-Resolution Sound at a more approachable and accessible price point. The Alpine Status system is also extremely flexible: all components can be purchased and used in “stand-alone” configuration.
The HDA-V90 Hi-Res Audio certified 5 channel amplifier redefines the industry benchmark in sound performance, delivering true high-resolution sound reproduction. The all-new digital design provides huge amounts of power output and an extraordinary damping factor making these amplifiers class-leading in every way. With performance at the highest standard, the HDA-V90 has a frequency response of 10-60kHz and a CH1-4: >500, CH5: >1,000 dampening factor to deliver high power output with precision, as well as a superlative high-definition sound experience.

RMS Output Power

75Wx4ch+300Wx1ch (4Ω)
100Wx4ch+500Wx1ch (2Ω)
Bridged 200Wx2ch (4Ω)

THD+N ≤0.02% (10W), ≤0.07% (Rated Power)
S/N Ratio CH1-4: >105dB, CH-5: >104dB
Frequency Response (-3dB) 10-60kHz (Hi-Res)
Damping Factor CH1-4: >500, CH-5: >1,000
Size (mm) W297xD192xH50.8
