ALPINE POWERSTACK AMP MONO BLOCK 200W RMS X 1 @ 2 / 4 OHMS - KTA200M

NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.

The ground-breaking KTA-200M Mono Power Pack Amplifier produces 400-watts of Alpine’s Exclusive Dynamic Peak Power for big subwoofer power in a small space.
Whats more, the KTA-200M Power Pack Mono amplifier perfectly pairs with the iLX-W650E 7” audio visual receiver (sold separately). By utilising the ultra-shallow chassis design of the head unit the amplifier mounts seamlessly onto the back of the chassis. This innovative space saving design, delivers incredible power output and dynamic sound—making the PowerStack duo an industry first.

Features:
• 1 x 400 Watts Dynamic Peak Power (DPP Power)
• 1 x 200 Watts RMS Power
• Includes mounting brackets

Specifications
• DPP Output: 1 x 400W (14.4V, 4Ω, @≤1% THD+N)
• Continuous Output 1 x 200W x 1 RMS x 4 (14.4V, 4Ω, @ ≤1% THD+N)
• Continuous Output 1 x 200W x 1 RMS x 4 (14.4V, 2Ω, @ ≤1% THD+N)
• S/N >80dB (ref. 1W into 4Ω)
• THD+N ≤0.1% (ref. 10W into 4Ω)
• RCA inputs (Low range=0.2-4V)

Crossover

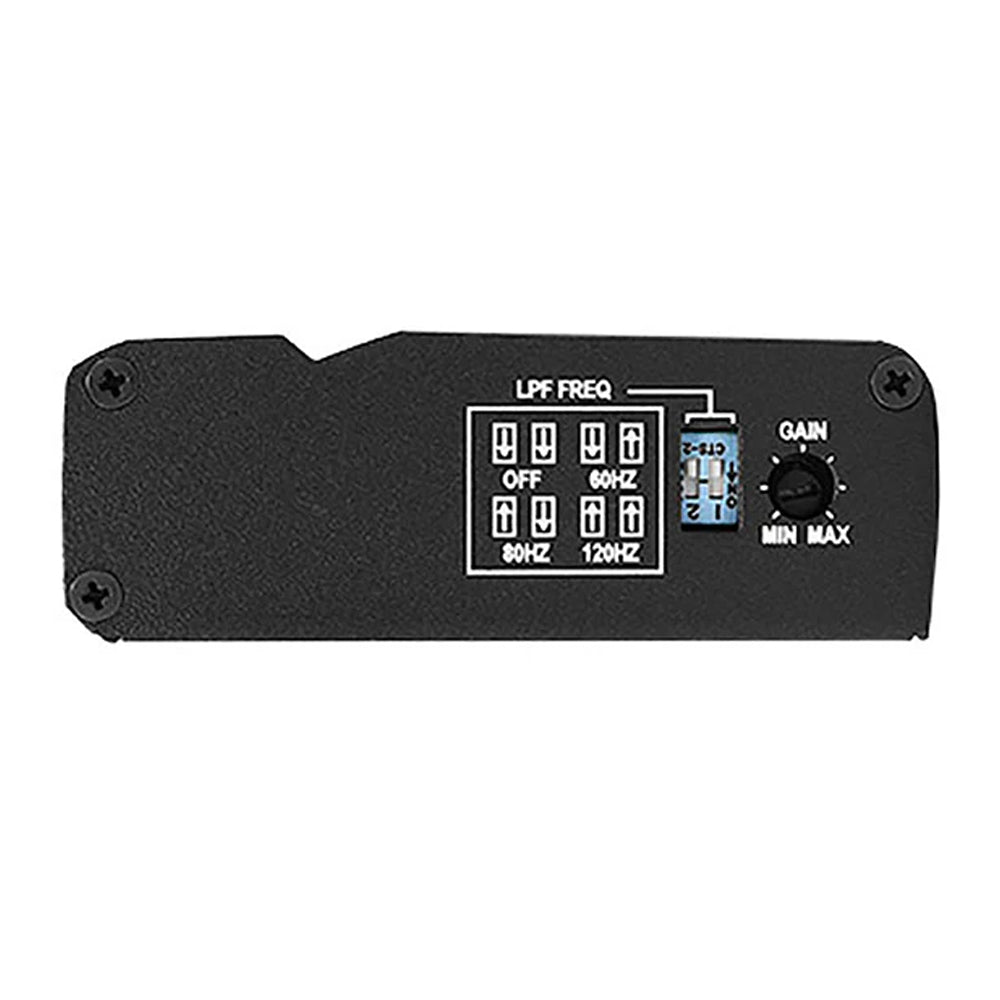

• Sound controls; Crossovers-Off/60Hz/80Hz/120Hz Linkwitz Riley LP Filter @ -24dB/Oct. (selectable); Input gain setting (variable)

Dimensions
• Without brackets: 89mm(W) x 36mm(H) x 181mm(L)
• With brackets: 89mm(W) x 39mm(H) x 198mm(L)
