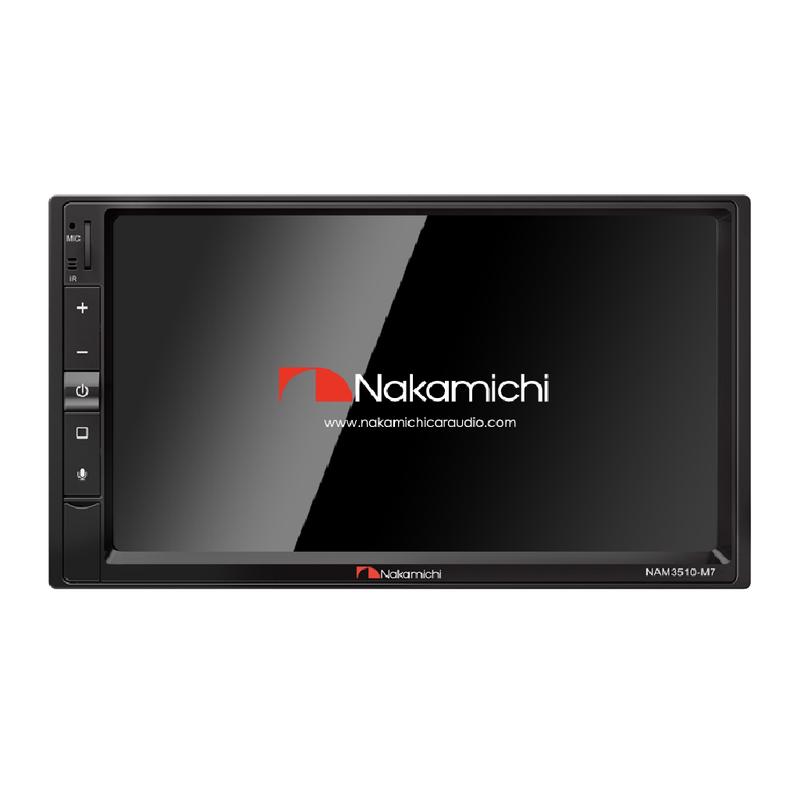

NAKAMICHI HEAD UNIT NAM3510 CARPLAY/ANDROID AUTO DOUBLE DIN - NAM3510-M7

NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.

Features:
Operation votage 14.4V(10.5-16V)
Product size 178×100×128MM
Panel Installation Size 178×100mm / 170×96mm
7" TFT Screen
Resolution 800×480RGB
Contrast ratio 500
Brightness 500nit
BLUETOOTH 4.0 +EDR
Frequency band 2.4GHZ
Max Range 5m
Max Power 4×50W
Pre-output(V) 4V/10Kohm
Pre-output impedance =600 Ohm
Speakers impedance 4-8 Ohm
External Video Input system NTSC/PAL/SECAM
External Video Input 1VP-P/75 Ohm
VIDEO FORMAT H264/MP4/AVI/MKV/FLV
AUDIO FORMAT MP3/APE/AAC/FLAC
USB Readable/chargeable(5±0.25V/1A)
FM Frequency 87.5-108.0MHZ
AM Frequency 522-1620KHZ

SWC Setup

https://formulanz.sharepoint.com/:f:/g/Evoo1Bgc7itHsy_mus4KWRQBBncEHgwlv0ewKUoS3ar_FQ?e=24VNBi
