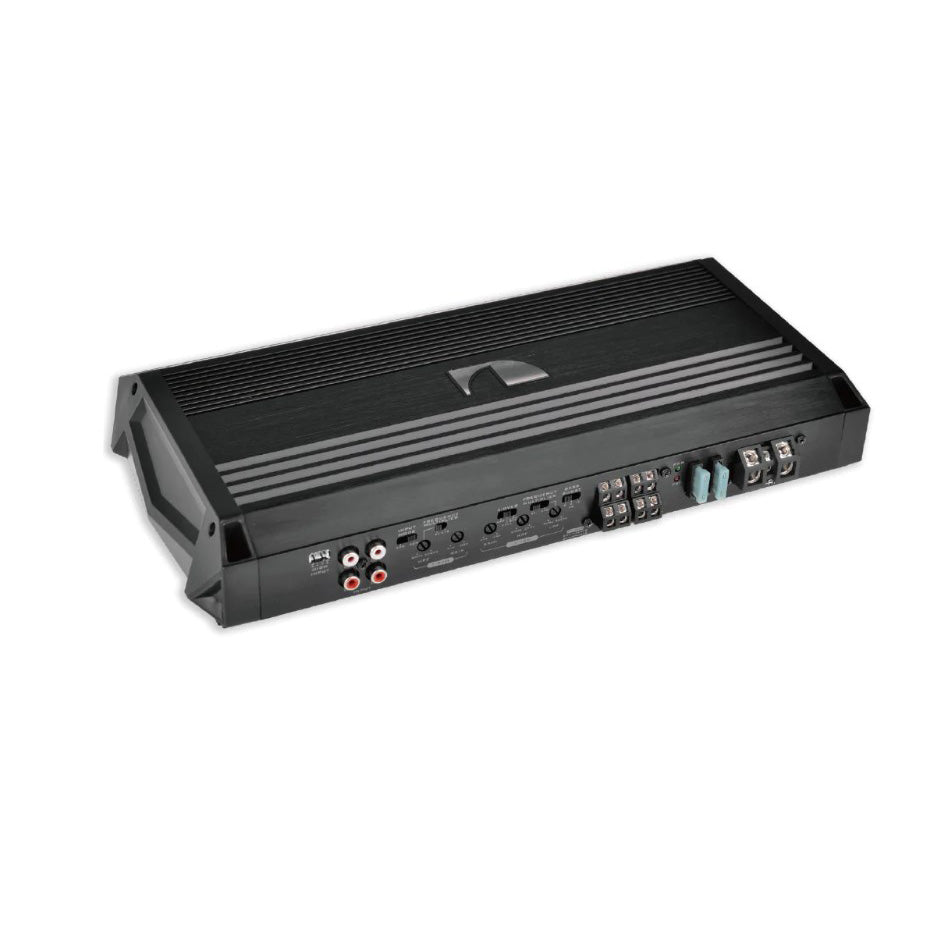

NAKAMICHI AMPLIFIER NGO SERIES 4-CH CLASS A/B 100W - NGO-A100.4

NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.

Amplifier Class:A/B
Amplifier Channels:4CH
N-Power Output @4ohm(T.H.D.10%): 100W x 4
N-Power Output @4ohm(T.H.D.1%): 90W x 4
N-Power Output@2ohm(T.H.D.1%): 130W x 4
N-Power Output @4ohm (Bridged,T.H.D.1%): 260W x 2
Max Power: 2400W
Frequency Response: 10Hz - 20kHz
Input Sensitivity: 500mV - 6V
Low Pass Cross Frequency3-4CH(×1,×10): 50Hz - 500Hz,500Hz-5KHZ
High Pass Cross Frequency1-2CH(×1,×10): 20Hz - 500Hz,200Hz-5KHZ
High Pass Cross Frequency3-4CH: 20Hz-3KHZ
Bass Boost: 0dB 6dB 12dB
Minimum Impedance : 20KO
Signal To Noise Ratio: =90dB
Distortion (THD): =0.2%
Fuse Size: 35A x 2
Net Weight: Approx. 2.5kg
Unit Dimension (LxHxW): 389x183x55mm
