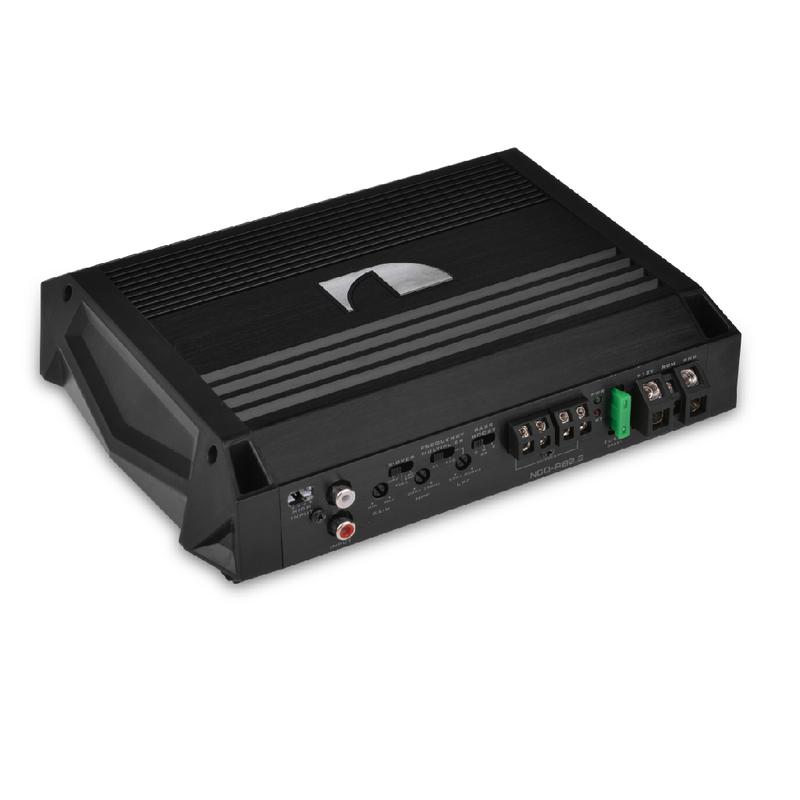

NAKAMICHI AMPLIFIER NGO SERIES 2-CH 80W - NGO-A80.2

NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.

SPECIFICATIONS:

Amplifier Class:A/B
Amplifier Channels:2CH
N-Power Output @4ohm(T.H.D.10%): 80W x 2
N-Power Output @4ohm(T.H.D.1%): 70W x 2
N-Power Output@2ohm(T.H.D.1%): 105W x 2
N-Power Output @4ohm (Bridged,T.H.D.1%): 210W x 1
Max Power: 960W
Frequency Response: 10Hz - 20kHz
Input Sensitivity: 500mV - 6V
Low Pass Cross Frequency: 50Hz - 500Hz,500Hz-5KHZ
High Pass Cross Frequency: 20Hz - 250Hz
Bass Boost: 0dB 6dB 12dB
Minimum Impedance : 20KO
Signal To Noise Ratio: =90dB
Sensitivity: 500m V~ 6 V
Distortion (THD): =0.2%
Fuse Size: 30A x 1
Net Weight: Approx. 1.7kg
Unit Dimension (LxHxW): 249x183x55mm
