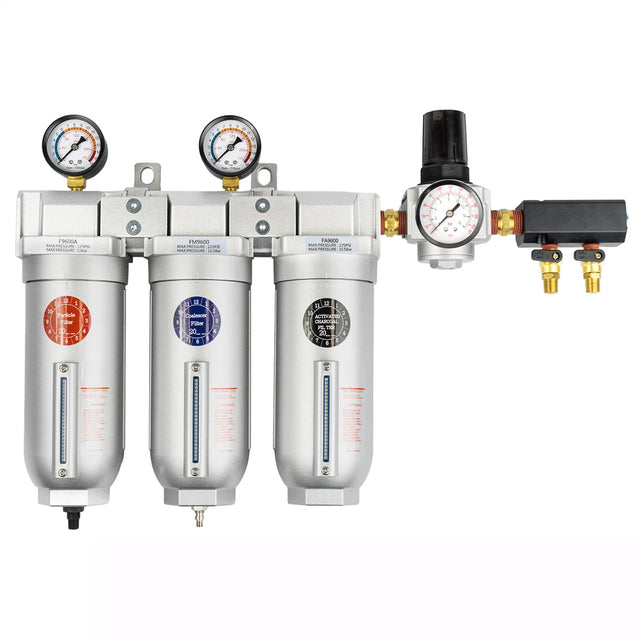

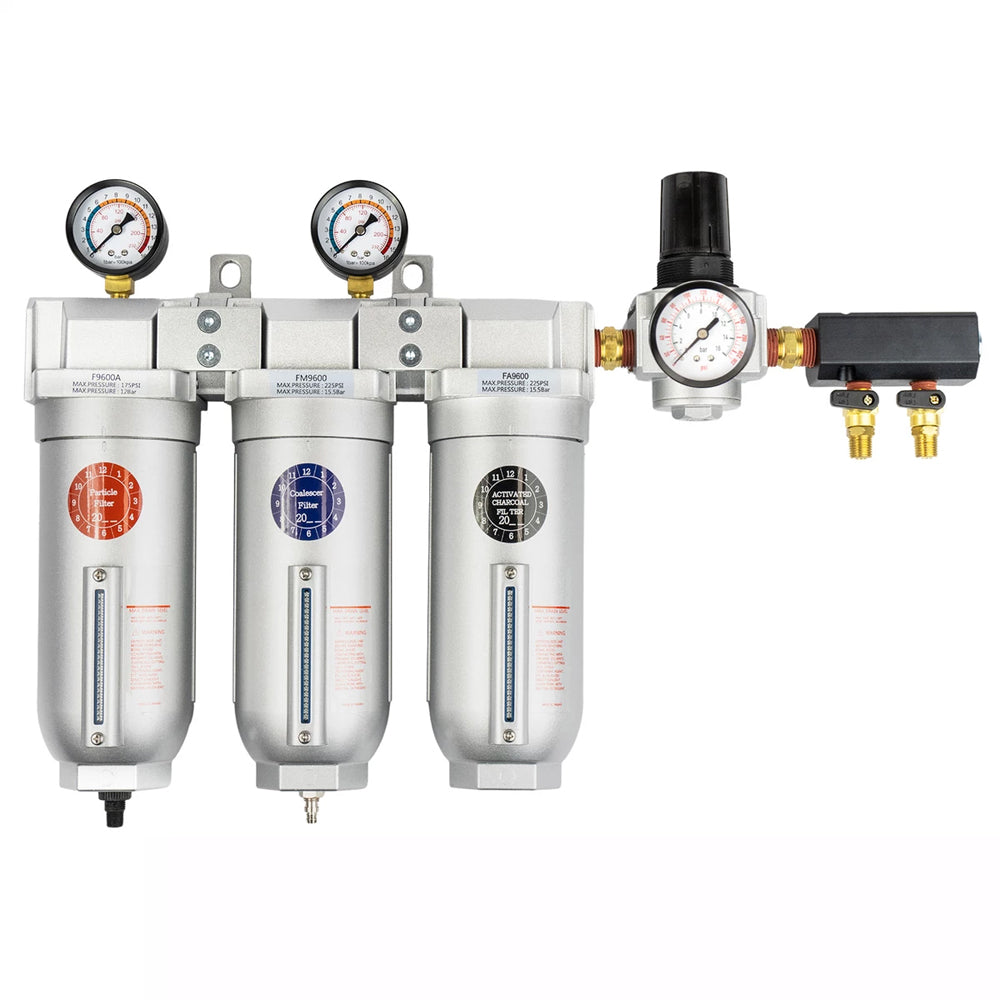

IWATA 2SPRAY 3 STAGE FILTER WITH REGULATOR & TWIN OUTLETS - PS.PCCR3S

NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.

The particle filter with auto drain/Coalescing filter/Activated-charcoal filter is a three part system. The first stage filter is designed to remove most liquid and solid particles from the air supply. The second stage Coalescing filter is used to remove 99.9% of oil vapour particles. The third stage activated-charcoal filter is for absorption of oil vapours and harmful gases, protecting the painter from the harmful vapours and gases.

*Also available as a kit. See Related Products below

Highlights

Stage 1: 5µm particulate filter element with auto drain:

Remove oil, condensed water and particles >5µm.

Stage 2: 0.01 Coalescer filter element:

Remove 99.99% particles and oil vapour to 0.01µm.

Stage 3: Active charcoal filter element:

Absorb oil vapours and odours from air stream.

Stage 4: Air pressure regulator and twin hose outlet

Specifications

Auto drain:
Set Pressure: 30~175 psi (2.1~12 Bar)
Manual drain:
Set Pressure: 7~215 psi (0.5~14.8 Bar)
Air Inlet/Outlet: 1/2", 3/4", 1"
Gauge Ports: 1/8"
See below related products for PS.PCCR3SFILTERSET re-service kit
