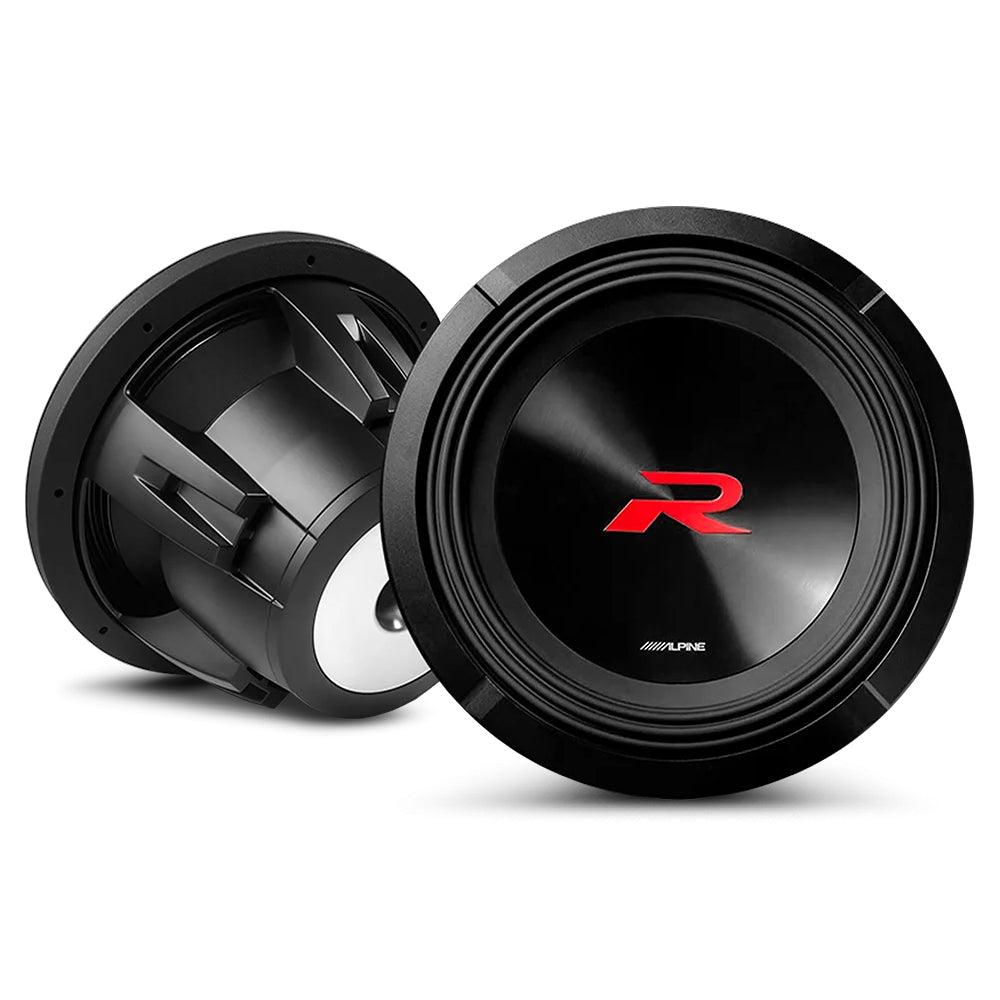

ALPINE (R2 SERIES) 12" SUBWOOFER DUAL 4OHM 750W RMS - R2-W12D4

NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.

Alpine is proud to announce the introduction of the new R-Series Subwoofer lineup that is built off the highly esteemed Type R platform. With select key design and build improvements, the R-Series Subwoofer is able to output more of that deep bass extension and control that the Type-R is known for.

The Next Evolution of Proven Performance
The new R-Series subwoofers take a great platform to the next level. Although the R-Series subwoofers are new for 2017, they actually come from an impressive Alpine lineage – the Type-R subwoofers. Type-R subwoofers have been known for their power handling, clean output and deep bass excursion at a mid-line price. Using the highly successful Type-R subwoofers as a foundation, we applied various performance and hardware improvements to the design, essentially transforming them into the new R-Series subwoofers – The Next Evolution of Proven Performance.

The new EZ-Change twist-lock grille mounting system makes subwoofer installation easier than ever-before. The optional grille (KTE-12G.3), exudes a tough look with the benefit of added protection.

More Rigid Dust Cap
Talc, a common mineral used in products such as baby powder and paint, has been found to have incredible damping properties while being less dense than the traditional Mica filler used in dust caps. By adding a calculated amount of talc to the mica polypropylene in the dust cap, we were able to increase vibration absorption of the cap while lowering the density. The resulting lighter dust cap contributes to a faster attack and a more accurate reproduction of low frequencies.

Stronger Cone Assembly
R-Series subwoofers feature a Kevlar-treated cone for durability. The combination of this cone with the Santoprene surround allows the subwoofer to deliver 19mm of X-max, for incredible, hard-hitting bass. A new method of attaching the spider and cone to the voice coil ensures not only rigidity throughout the motor structure but contributes to the subwoofers increased accuracy.

Perfect Power Match
Maximise the potential of your S-Series subwoofers with Alpine’s perfectly power-matched S-Series amps. Power a single R2-W12D4 subwoofer effortlessly with the 750W R2-A75M mono amplifier, or for an even bigger impact, pair two or more R2-W12D4 subs with the powerful 1500W R2-A150M amp to ensure optimal sound quality and performance.

Specifications:
• Subwoofer Type: 12′′ (30 cm) Subwoofers (4Ω + 4Ω)
• Frequency Response: 24Hz - 200Hz
• Power Handling:
- 2250 Watts peak power
- 750 Watts RMS power
• Design:
- Cast Aluminum frame
- H.A.M.R surround
- Heavy Duty 8 gauge Push with Housing, Banana Plug Jumper
• Dimensions:
- Mounting diameter : 275mm
- Mounting depth : 162 mm
