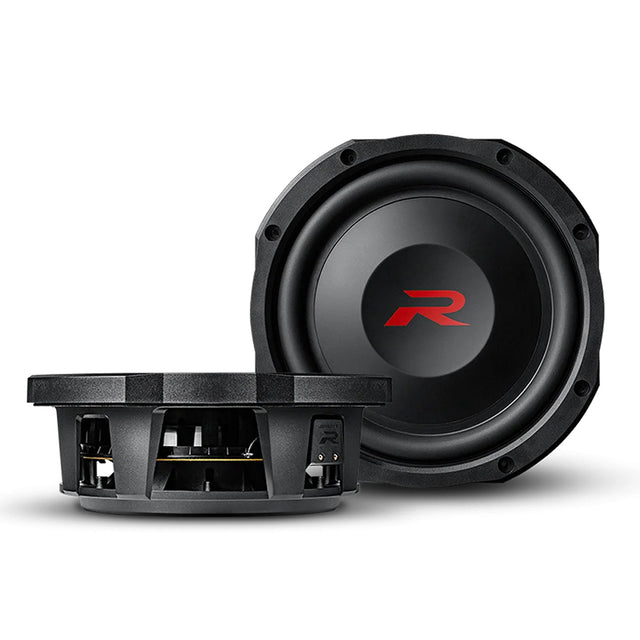

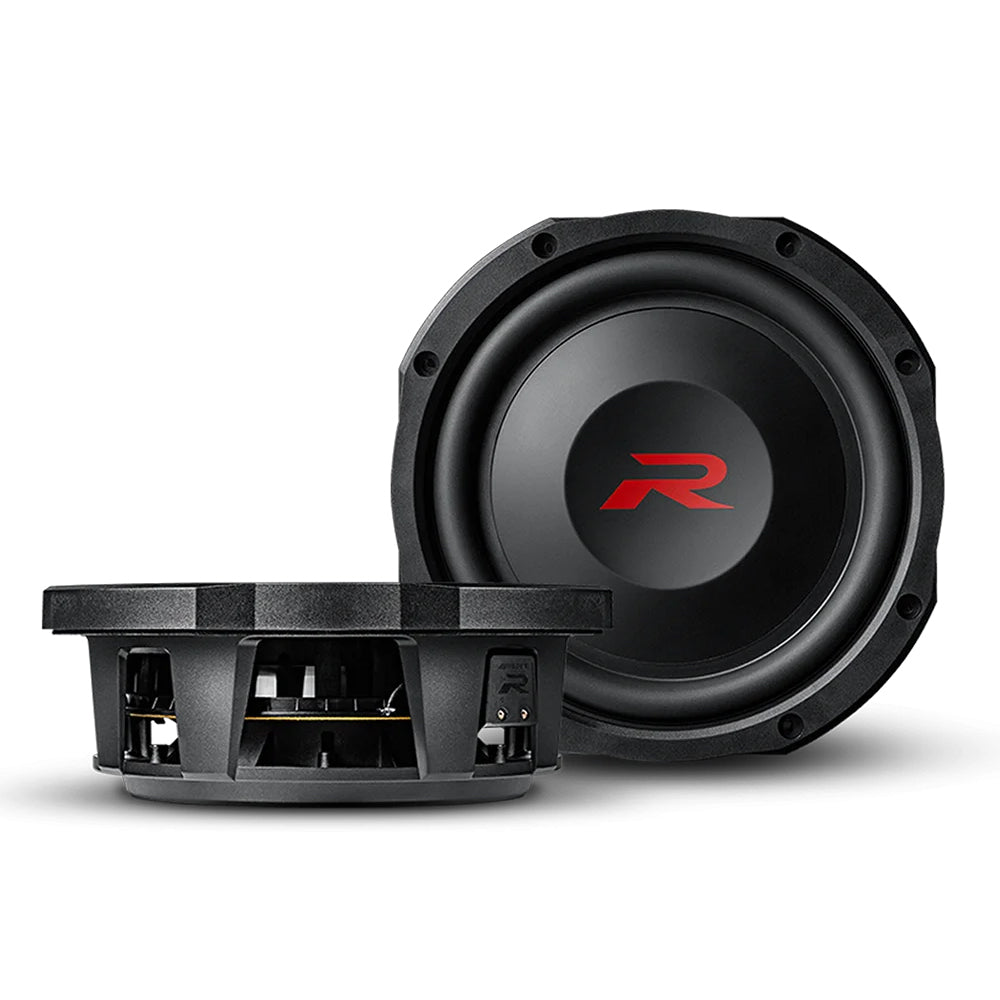

ALPINE (R SERIES) 10" SUBWOOFER DUAL 4OHM 600W RMS SHALLOW PROFILE - RS-W10D4

NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.

The all-new R-Series shallow profile subwoofers are extreme in every way, commanding a tough and rugged appearance with high performance bass output to match.

Alpine takes compact bass to the next level with a state-of-the-art design coupled engineering innovation to accomplish an ultra-shallow profile without compromising on bass level output and quality in anyway. An exclusive dual gap motor structure combined with a powerful neodymium magnet allows for high power handling of 600Watts RMS and 1800Watts max. Moreover, with its bespoke cast aluminium frame and ground-breaking woofer cone design enables an incredibly linear X-max of 20mm ensuring the best possible bass performance.

Alpine’s R-Series Shallow Subwoofers give you the best of both worlds in size and sound.

What’s more, the optional mesh grille KTE-RS10G, exudes a tough look and adds a premium finish to your custom installation, all-while giving your equipment the protection it deserves.

More bass with less space—Alpine’s new Shallow R-Series rise to the top, giving you extraordinary bass performance in an ultra-compact form to suit and fit into virtually any application.

Features
• 10” High-Performance Shallow Bass Driver
• Alpine Gen2 DD Linear Magnetic Circuit
• Cast Aluminum Frame
• Aluminum Dust Cap
• Neodymium Magnet
• 4″ High Temperature Voice Coil
• Heavy-gauge Screw Terminals
• Compatible with KTE-RS10G Subwoofer Grille

Specifications
• RMS Power Handling: 600W
• Peak Power Handling: 1800W
• X-Max: 20mm
• Nominal Impedance: 4ohms+4ohms
• Frequency Response: 29Hz-200Hz
• Sensitivity: (1W/1M): 83dB
• Voice Coil: 4″ (102mm)
• Mounting Dimensions: 243mm diameter x 81mm depth
