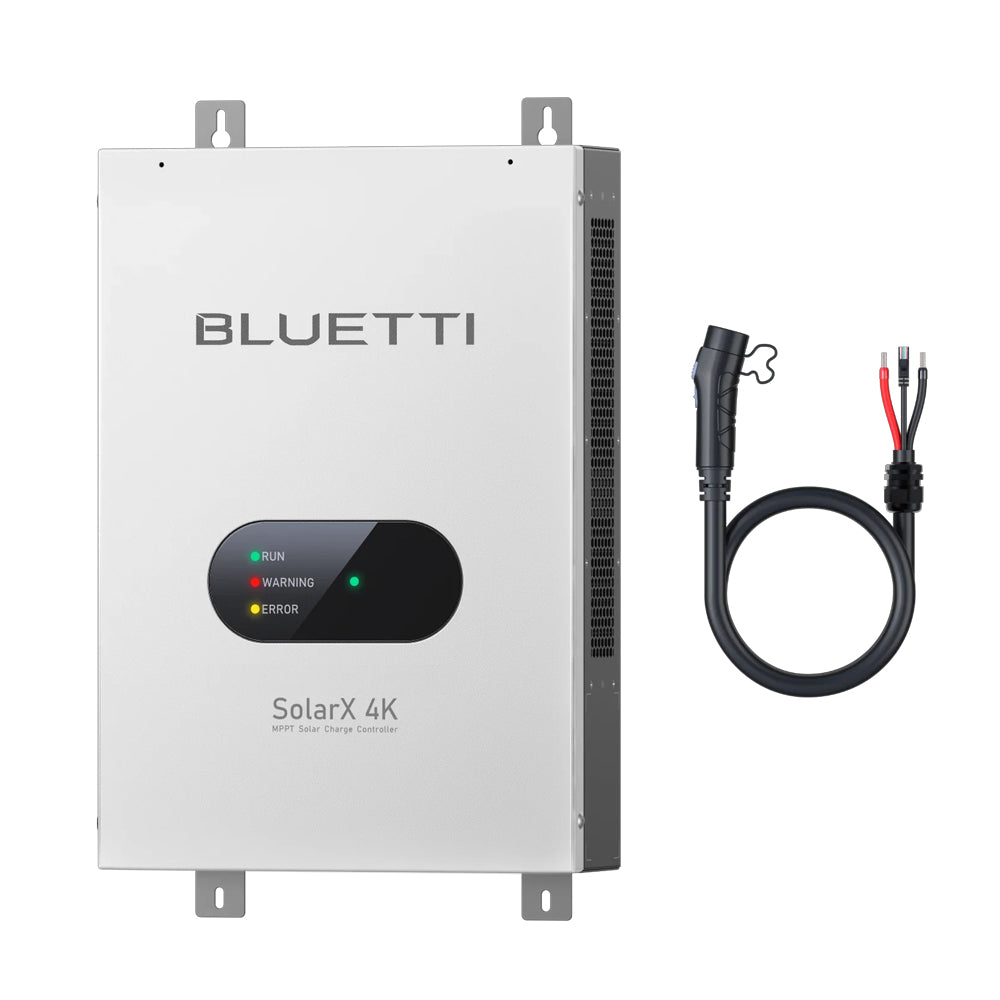

BLUETTI SOLAR X 4K SOLAR CHARGE CONTROLLER WITH P090D CABLE - SOLARX-P090D

NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.

Seamless Solar Compatibility, Supercharged
Meet the world's first 4kW solar charge controller. The BLUETTI SolarX 4K takes 150–500V from nearly any rooftop or ground array and converts it into safe, sub-60V charging for BLUETTI power stations—up to 4,000W. That means faster charging, more stored energy, and reliable power whether you're backing up your home, running an off-grid cabin, or building your own solar farm.

Scalable Solar Power, 4 kW to 12 kW
SolarX 4K lets you decide how much solar power fits your life. Use one unit to cover daily essentials, or scale up to three for your whole home. It connects to your existing solar setup via AC coupling, keeping BLUETTI's DC input ports free for extra panels, so you get more energy, faster, without tying up your system.

Charge Your BLUETTI System, Your Way

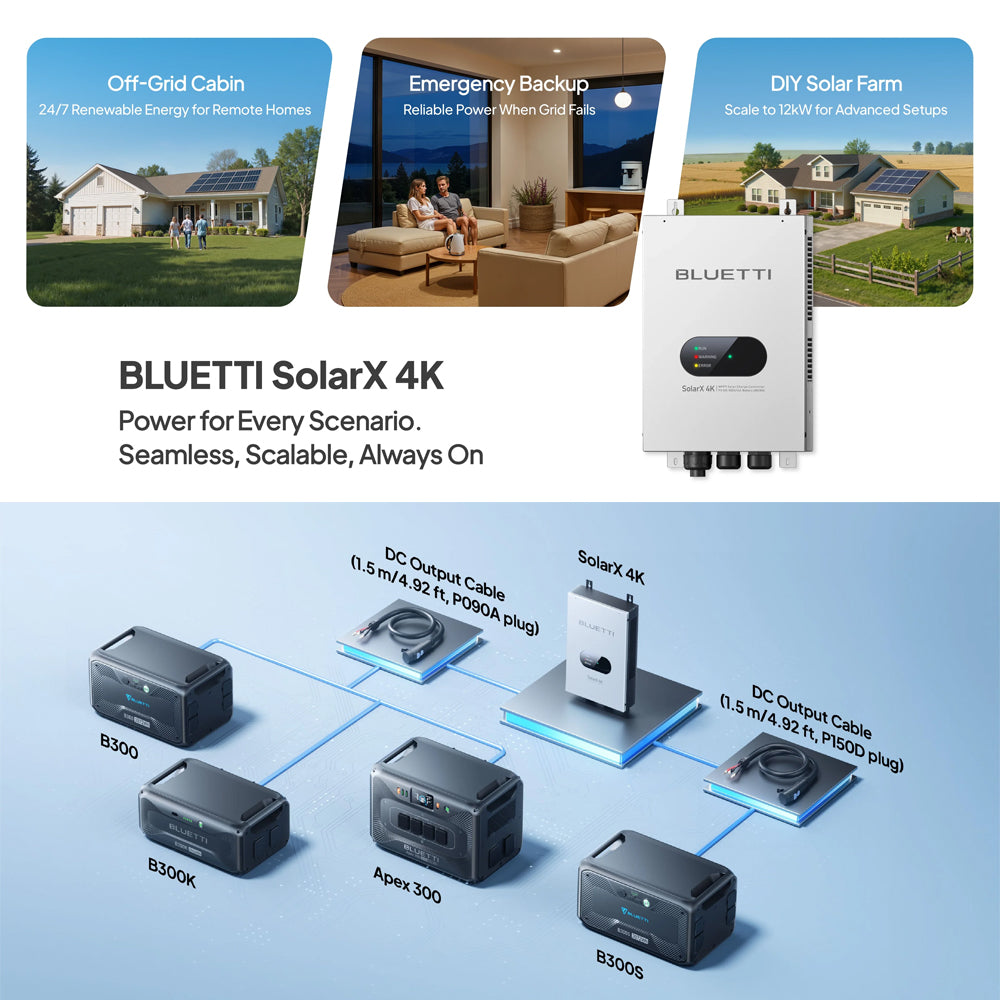

SolarX 4K works seamlessly with a wide range of BLUETTI power stations and battery packs, from Apex 300 and AC300 to AC500, B300K, B300, and B300S. Whether you're charging one unit, several at once, or mixing stations with batteries, SolarX 4K delivers safe, efficient, and flexible solar charging tailored to your setup.

Control Your Solar Power Anywhere, Anytime
Easily monitor your system in real-time, receive firmware updates, and troubleshoot instantly, all from the BLUETTI app, giving you complete control wherever you are.

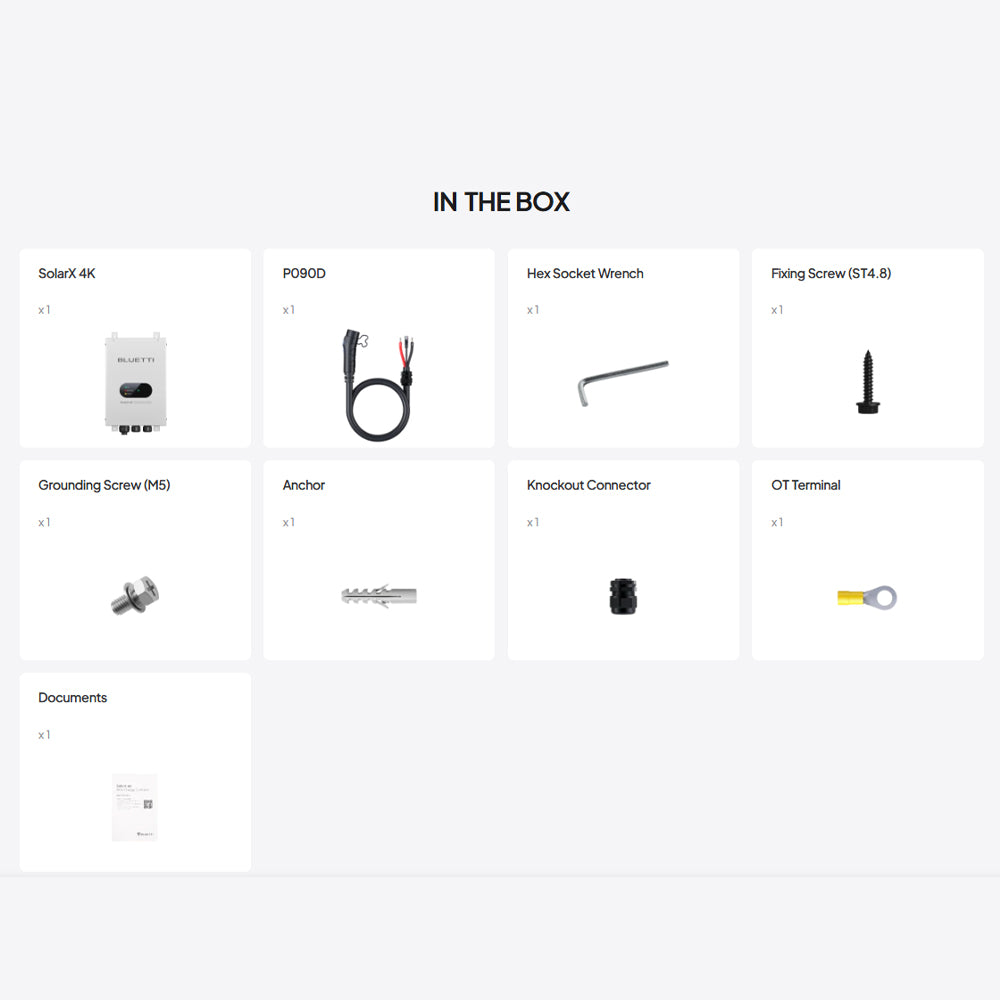

What's in the box:
• SolarX 4K
• P090D
• Hex Socket Wrench
• Fixing Screw
• Grounding Screw (M5)
• Anchor
• Knockout Connector
• OT Terminal
• Documents

Specifications:
INPUT
Max. Input Power: 4,200 W
Open-Circuit Voltage: 500 VDC
Startup Voltage: 150 VDC
MPPT Operating Voltage: 120 VDC to 450 VDC
Number of MPPT: 1
Rated Input Current: 13 A
Max. Input Current: 17 A

OUTPUT
Output Power: 4,000 W
Max. Output Voltage: 58 V
Min. Output Voltage: 35 V
Max. Output Current: 80 A
Communication Interface: RJ45

GENERAL
MPPT Efficiency: 99% Max.
Connectivity: CAN 2.0/Bluetooth/Wi-Fi
Overtemperature Protection: 55°C (131°F)
Operating Humidity: -20°C to 55°C (-4°F to 131°F)
Operating Altitude: ≤ 2,000 m (6,562 ft)
Noise Level: 52 dB
Cooling Method: Air Cooling
Net Weight: 7.6 kg (16.8 lbs)
Protection Grade: IP21

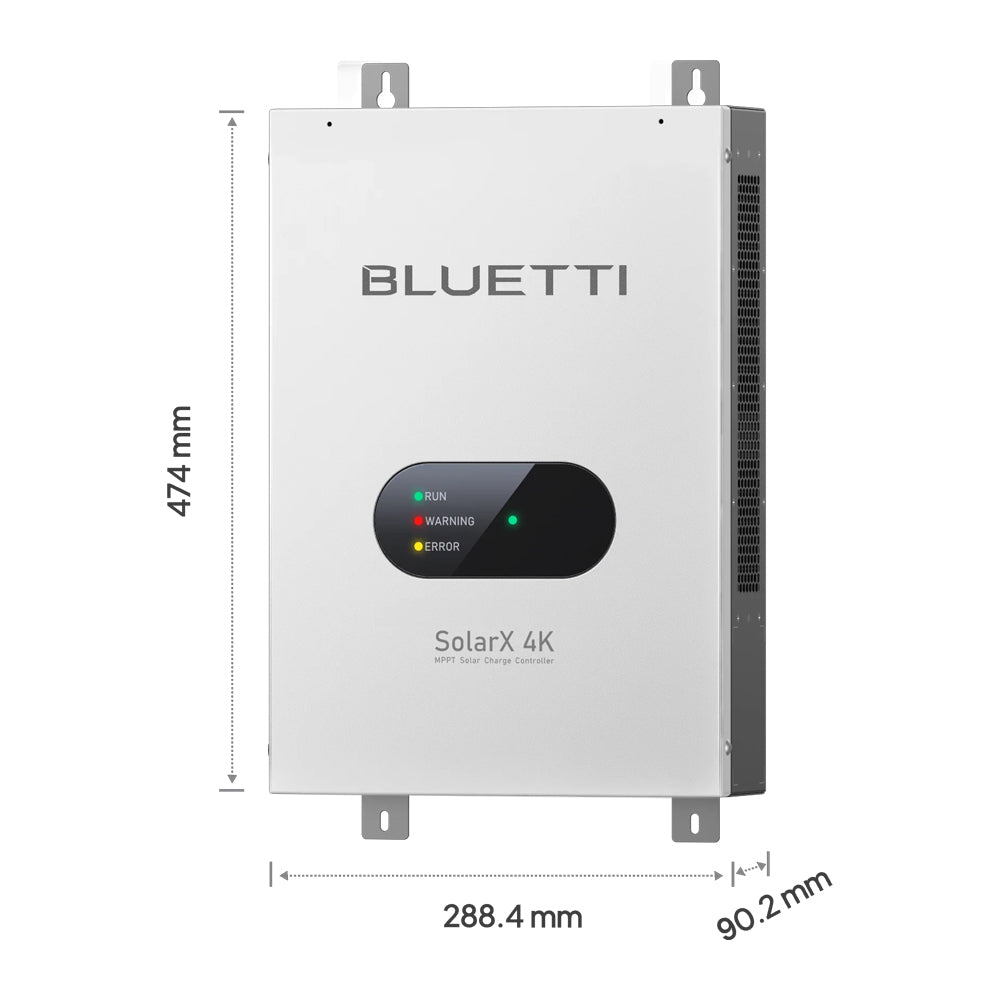

Dimensions (L × W × H): 288.4 × 474.0 × 90.2 mm
Warranty: 2 Years
