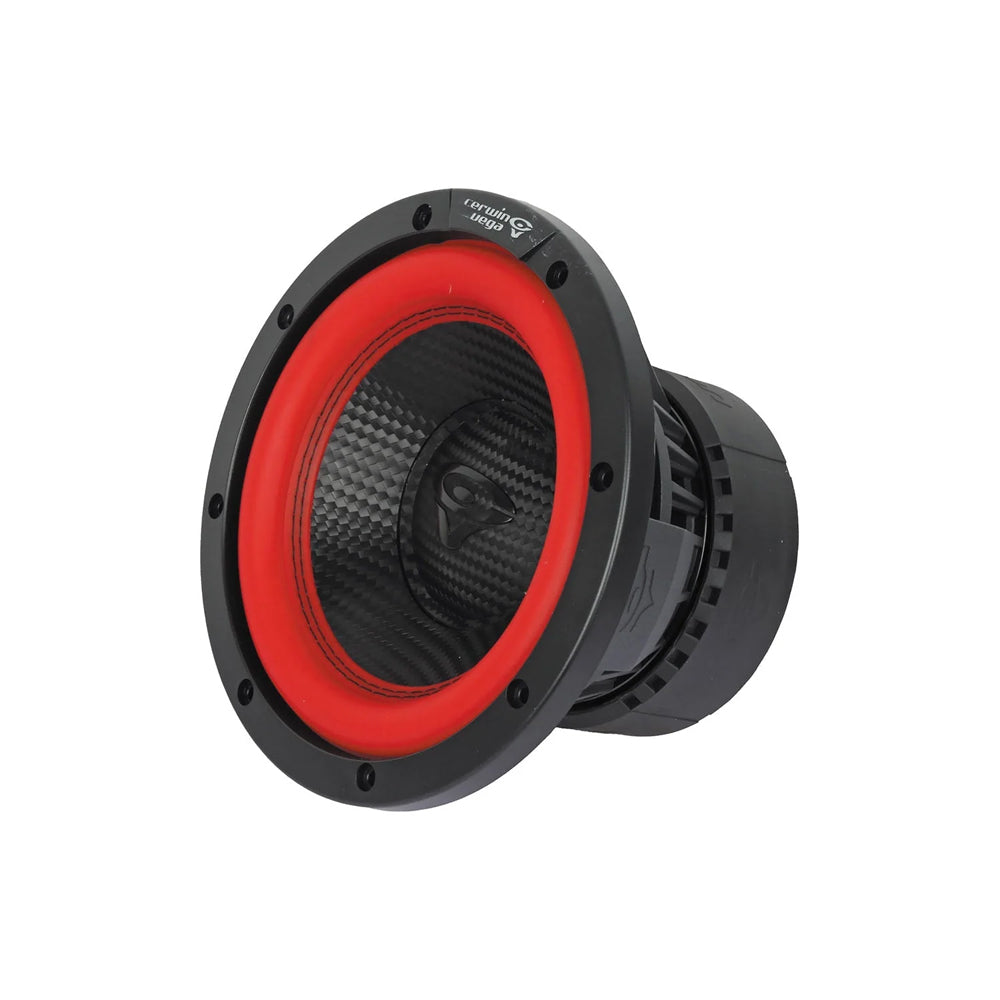

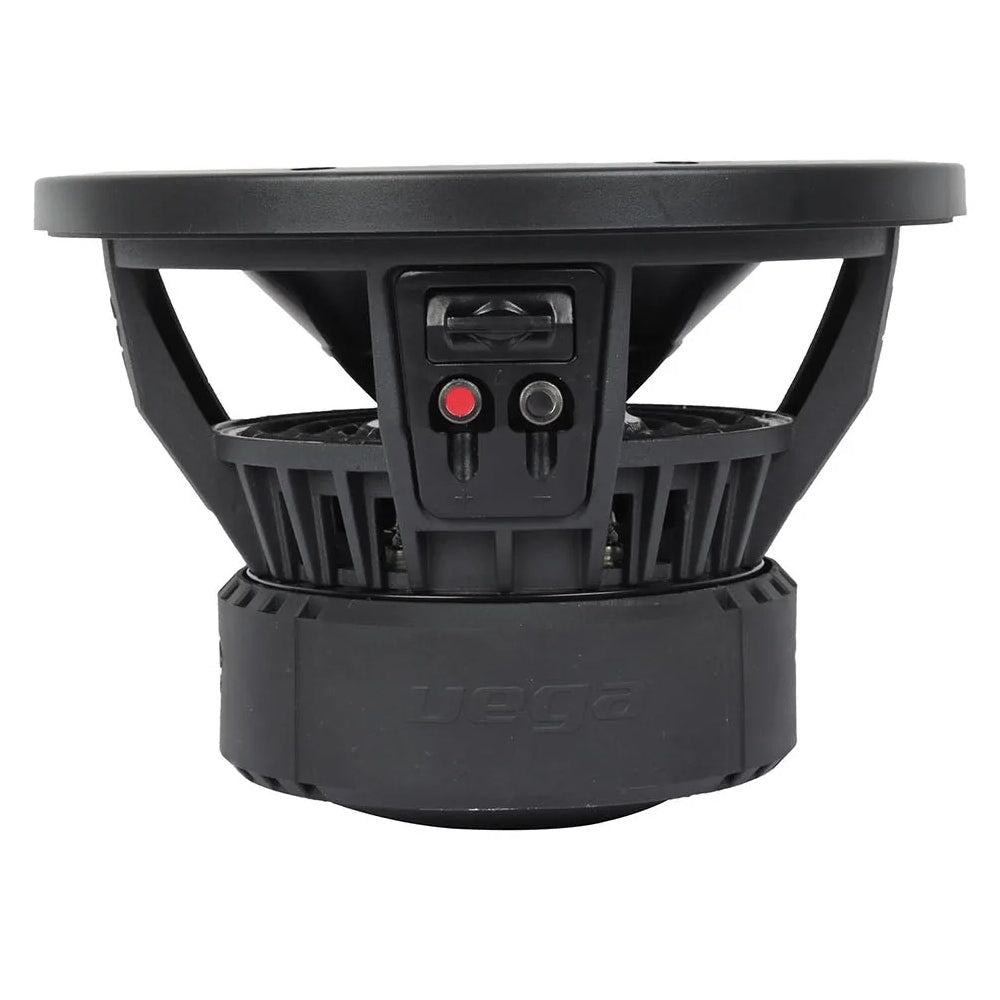

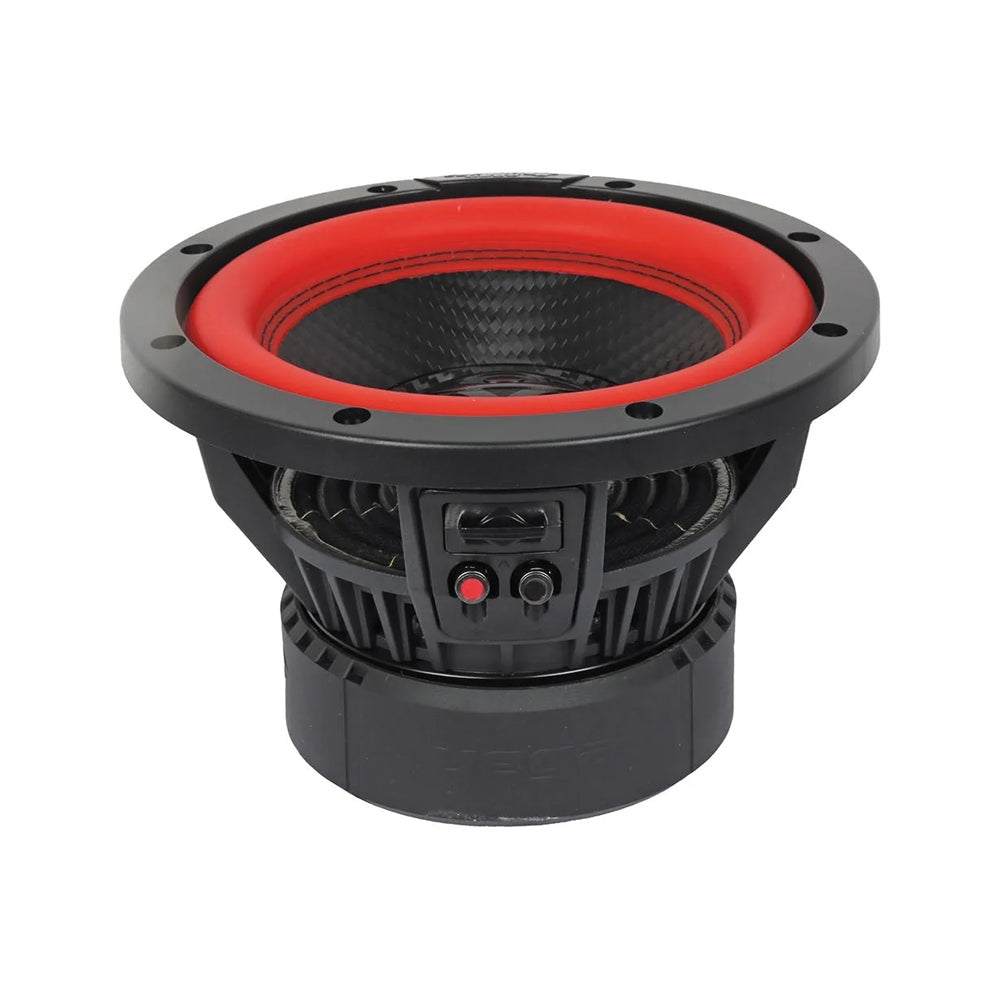

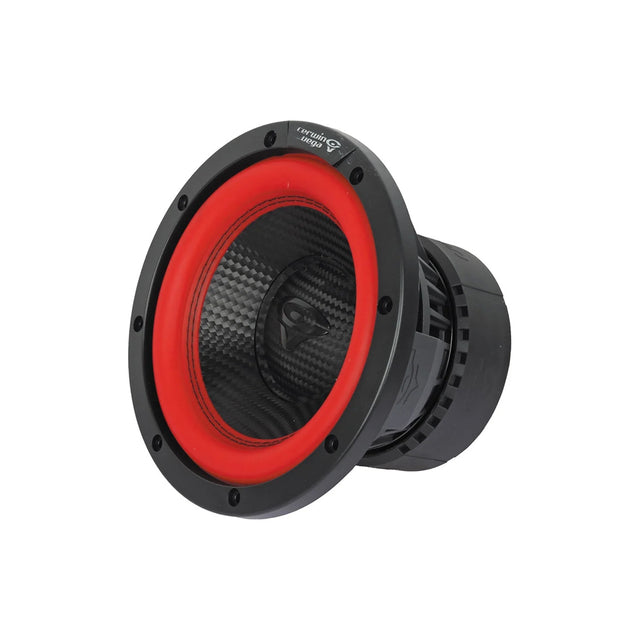

8" Vega Subwoofer DVC 4Ω
The Cerwin-Vega V8DV4 VEGA 8" Dual Voice Coil Subwoofer (4Ω) delivers powerful, hard-hitting bass performance in a compact and versatile design. Built for car audio enthusiasts who demand strong low-frequency output without sacrificing sound quality, this 8-inch subwoofer produces deep, punchy bass with excellent clarity and minimal distortion. Whether you're upgrading a factory system or building a custom high-performance setup, the V8DV4 delivers the unmistakable Cerwin-Vega VEGA bass experience.

As part of the legendary Cerwin-Vega VEGA subwoofer series, the V8DV4 is engineered with premium materials and advanced acoustic design to provide powerful output and long-lasting durability. Its dual 4-ohm voice coil configuration offers flexible wiring options for system builders and installers, making it easy to match the subwoofer with a wide variety of car audio amplifiers. The addition of Cerwin-Vega’s single terminal impedance selector simplifies installation while ensuring optimized impedance matching for maximum system efficiency and performance.

At the core of the V8DV4 is a hybrid carbon fiber and polypropylene cone, designed to maintain exceptional rigidity during high excursion. This advanced cone material allows the subwoofer to deliver tight, controlled bass while resisting distortion at high output levels. The stitch-reinforced Santoprene surround enhances durability and flexibility, allowing the cone to move freely while maintaining consistent performance during demanding playback conditions.

The subwoofer is powered by a high-strength ferrite motor structure, delivering the magnetic force needed for impactful and accurate bass reproduction. This powerful motor system ensures the V8DV4 can handle significant power while maintaining smooth, precise low-frequency response.

Whether you're designing a compact high-output car audio system, upgrading your vehicle’s bass performance, or building a competition-ready setup, the Cerwin-Vega V8DV4 8-inch DVC subwoofer delivers the legendary sound the brand is known for. When the bass drops and the system comes alive, there’s only one thing people will say: “That’s the VEGAS.”

Key Features

• 8" VEGA Series Car Audio Subwoofer
• Dual 4-Ohm Voice Coil Design
• Single Terminal Impedance Selector
• Hybrid Carbon Fiber / Polypropylene Cone
• Stitch-Reinforced Santoprene Surround
• High-Strength Ferrite Motor Structure
• Deep, Powerful Bass with Low Distortion

Specifications
SPEAKER SIZE - 8”
SPEAKER TYPE - SUBWOOFER
OHMS (PER COIL) - 4
NUMBER OF VOICE COILS - DUAL
CONE MATERIAL - POLYPROPYLENE
DIAPHRAGM MATERIAL - CARBON FIBER, DIAPHRAGM MATERIAL - POLYPROPYLENE
BASKET MATERIAL - CAST ALUMINIUM
MAGNET TYPE - FERRITE (CERAMIC)
SURROUND MATERIAL - SANTOPRENE
VOICE COIL DIAMETER - INCH (MM) - 2.5”
THIELE/SMALL PARAMETERS
SENSITIVITY (1W/1M): 85
RE (Ω) [SERIES]: 4+4
QMS: 6.53
QES: 0.42
QTS: 0.39
FS (HZ): 53
VAS (L): 6.29
CMS (MM/N): 0.097
MMS (G): 96.15
SD (M2): 213.82
BL (T*M): 11.13
XMAX (MM): 6.5
POWER HANDLING RMS: 800
POWER HANDLING MAX: 2400
MOUNTING DEPTH: IN.(MM):5.43"" (138MM)
CUT OUT DIAMETER IN.(MM):7.48"" (190MM)
OVER ALL DIAMETER IN.(MM):8.72"" (221.5MM)
OVER ALL HEIGHT IN.(MM):6.10"" (155MM)
