IWATA | SKU:
FORMULA-WIDER2152S

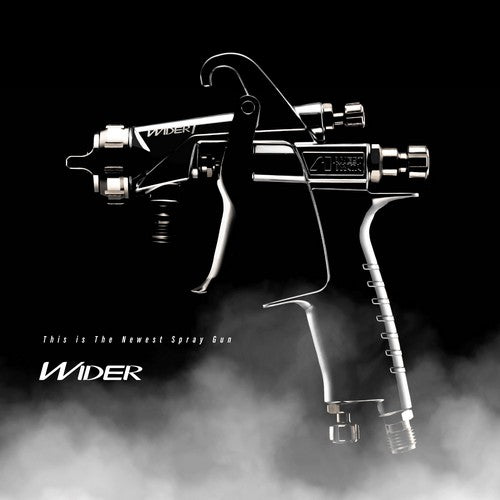

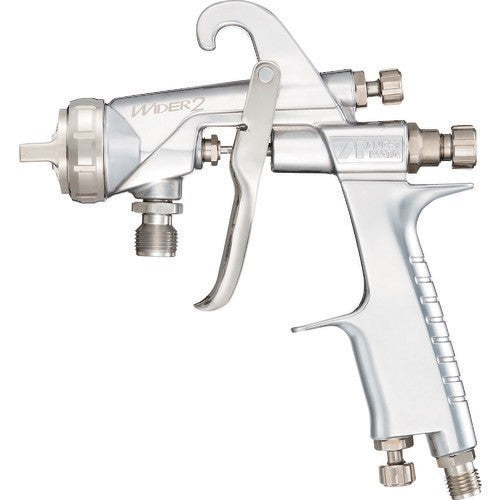

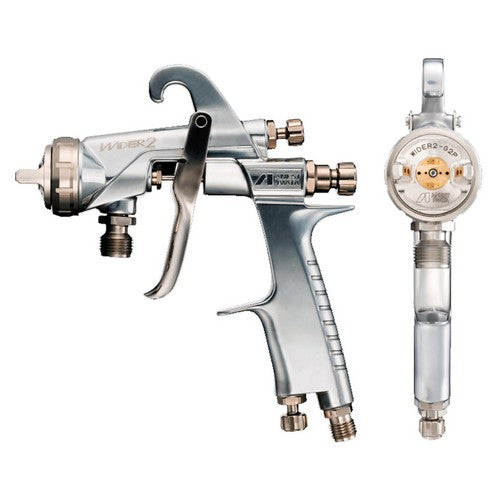

IWATA SUCTION SPRAYGUN WIDER2 1.5MM K2 CAP GUN ONLY - WIDER2152S
$579.00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Couldn't load pickup availability
NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.
Dependable Quality and Repeatability
We have always created the ideal spray guns, adapted to diverse applications and evolving paints. Newly developed the WIDER1 and WIDER2 models. We have distilled this experience and expertise into this new WIDER model.
FEEL
Linear Response Pattern Adjustment set - Our newly-developed pattern adjustment set now provides around 35% with 1 turn, around 50% with 1.5 turns, and around 70% with 2 turns.
REPEATABILITY
Revised Air Valve Seat Sets for a more consistent installation installing it into place could produce differences in air volume due to its’ position. This difference could potentially influence paint output and pattern width. We revised the design for the new WIDER, making the orifices much larger and more uniform so that installing the air valve seat set in produces more repeatable results.
Previous Model New Model Type of Feed Fluid Nozzle Diameter (Fmm) Atomizing Air Pressure (MPa) Air Consumption (L/min) Fluid Output (mL/min) Pattern Width (mm) Atomization Air Cap Weight (g) Application
W-200-122P WIDER2-12G2P Pressure 1.2 0.29 500 500 400 High atomization G2P 375 Large parts and vehicles, line painting
W-200-151S WIDER2-15K1S Suction 1.5 0.29 200 240 210 General atomization K1 375 Wood and furniture, metals
W-200-152S WIDER2-15K2S Suction 1.5 0.29 330 240 290 High atomization K2 375 Automotive refinishing, Wood and furniture, plastics
W-200-182S WIDER2-18K2S Suction 1.8 0.29 330 290 340 High atomization K2 375 Automotive refinishing, Wood and furniture, plastics
W-200-201S WIDER2-20R1S Suction 2 0.29 260 350 260 General atomization R1 375 Metals, Wood and furniture, medium-viscosity paints
W-200-202S WIDER2-20R2S Suction 2 0.29 360 350 290 High atomization R2 375 Metals, Wood and furniture, medium-viscosity paints
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.
Dependable Quality and Repeatability
We have always created the ideal spray guns, adapted to diverse applications and evolving paints. Newly developed the WIDER1 and WIDER2 models. We have distilled this experience and expertise into this new WIDER model.
FEEL
Linear Response Pattern Adjustment set - Our newly-developed pattern adjustment set now provides around 35% with 1 turn, around 50% with 1.5 turns, and around 70% with 2 turns.
REPEATABILITY
Revised Air Valve Seat Sets for a more consistent installation installing it into place could produce differences in air volume due to its’ position. This difference could potentially influence paint output and pattern width. We revised the design for the new WIDER, making the orifices much larger and more uniform so that installing the air valve seat set in produces more repeatable results.
Previous Model New Model Type of Feed Fluid Nozzle Diameter (Fmm) Atomizing Air Pressure (MPa) Air Consumption (L/min) Fluid Output (mL/min) Pattern Width (mm) Atomization Air Cap Weight (g) Application
W-200-122P WIDER2-12G2P Pressure 1.2 0.29 500 500 400 High atomization G2P 375 Large parts and vehicles, line painting
W-200-151S WIDER2-15K1S Suction 1.5 0.29 200 240 210 General atomization K1 375 Wood and furniture, metals
W-200-152S WIDER2-15K2S Suction 1.5 0.29 330 240 290 High atomization K2 375 Automotive refinishing, Wood and furniture, plastics
W-200-182S WIDER2-18K2S Suction 1.8 0.29 330 290 340 High atomization K2 375 Automotive refinishing, Wood and furniture, plastics
W-200-201S WIDER2-20R1S Suction 2 0.29 260 350 260 General atomization R1 375 Metals, Wood and furniture, medium-viscosity paints
W-200-202S WIDER2-20R2S Suction 2 0.29 360 350 290 High atomization R2 375 Metals, Wood and furniture, medium-viscosity paints
