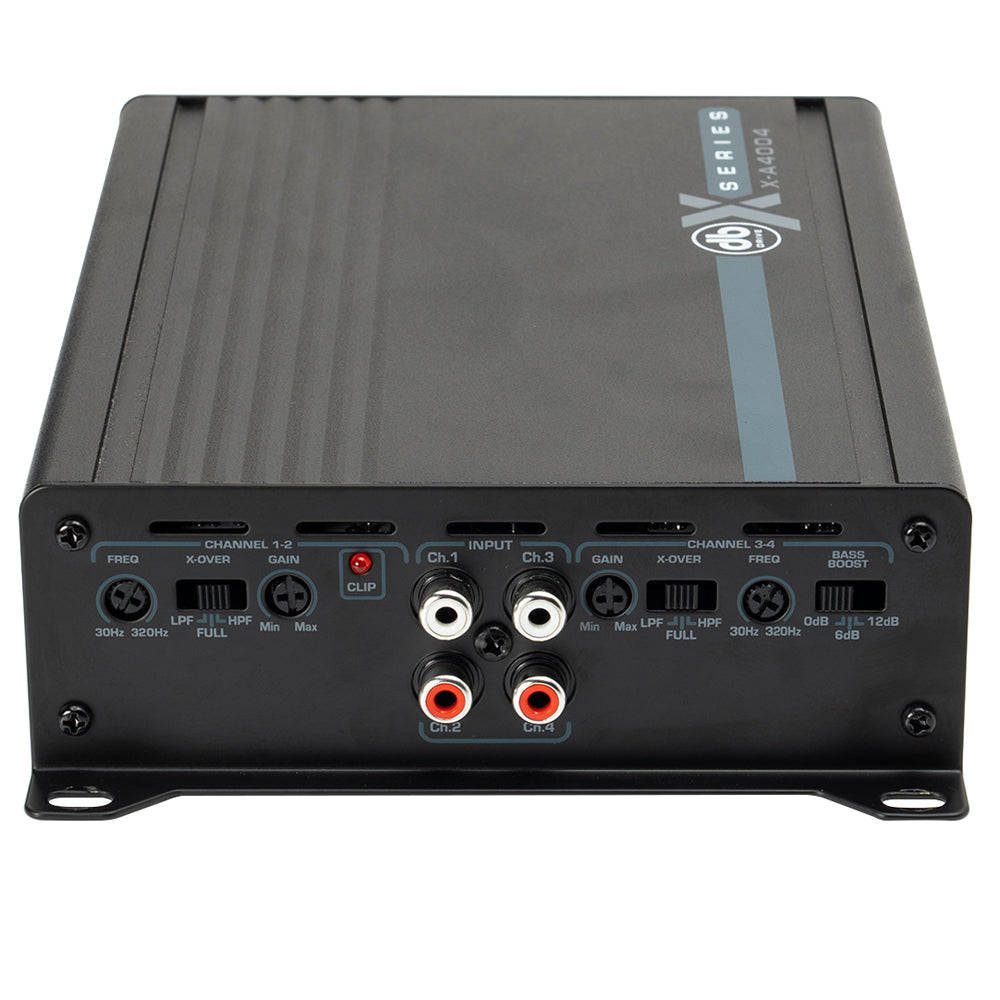

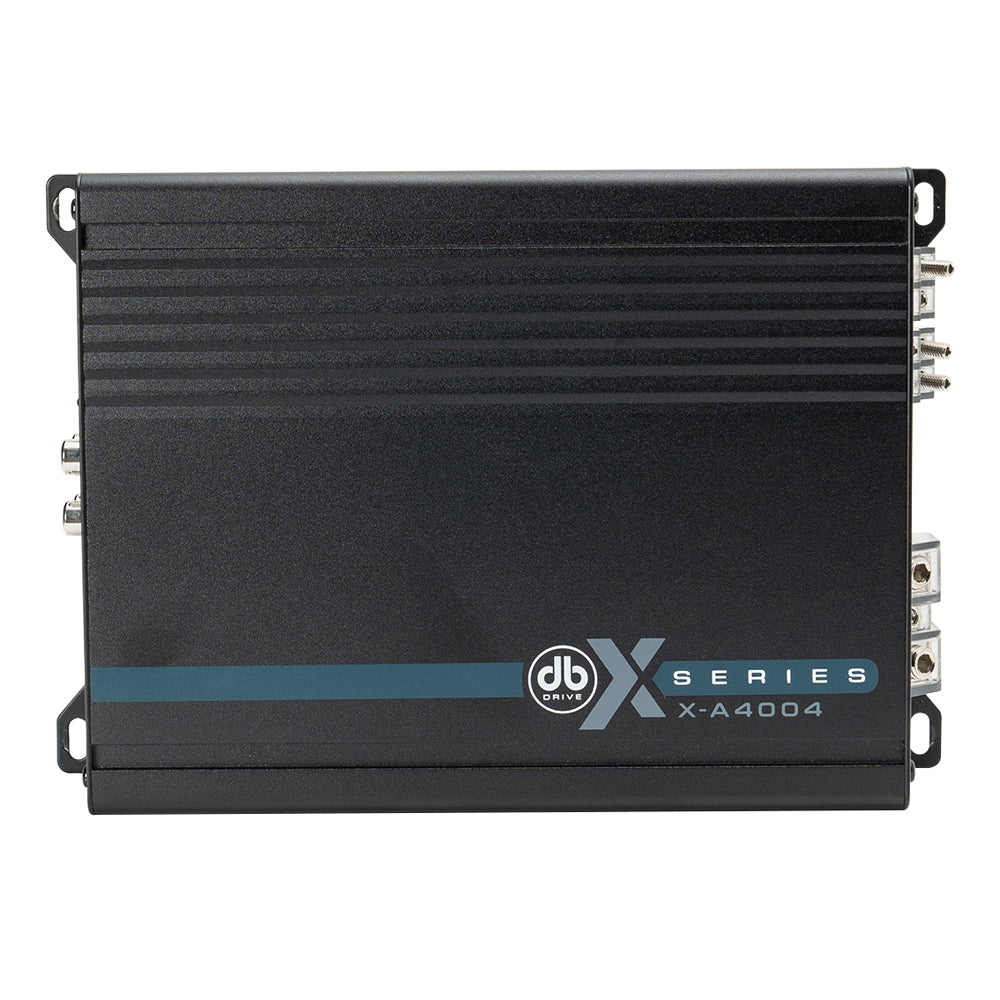

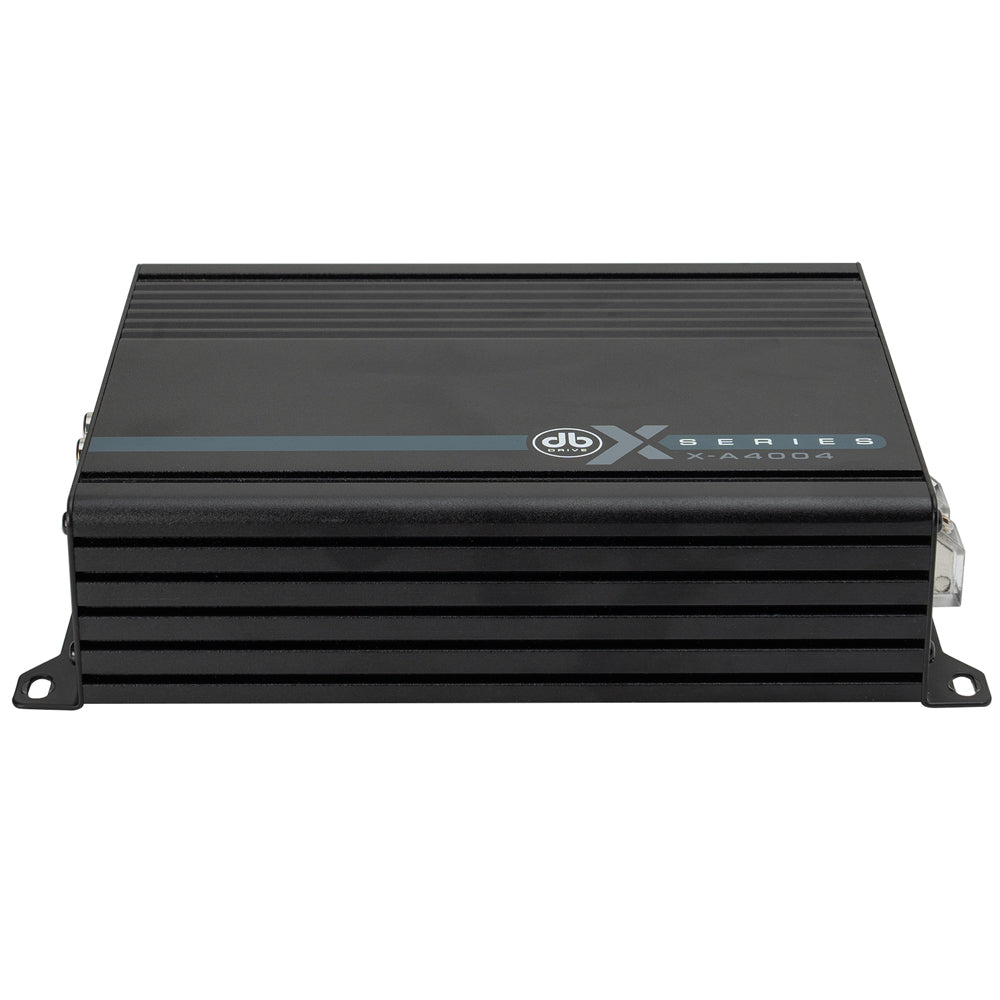

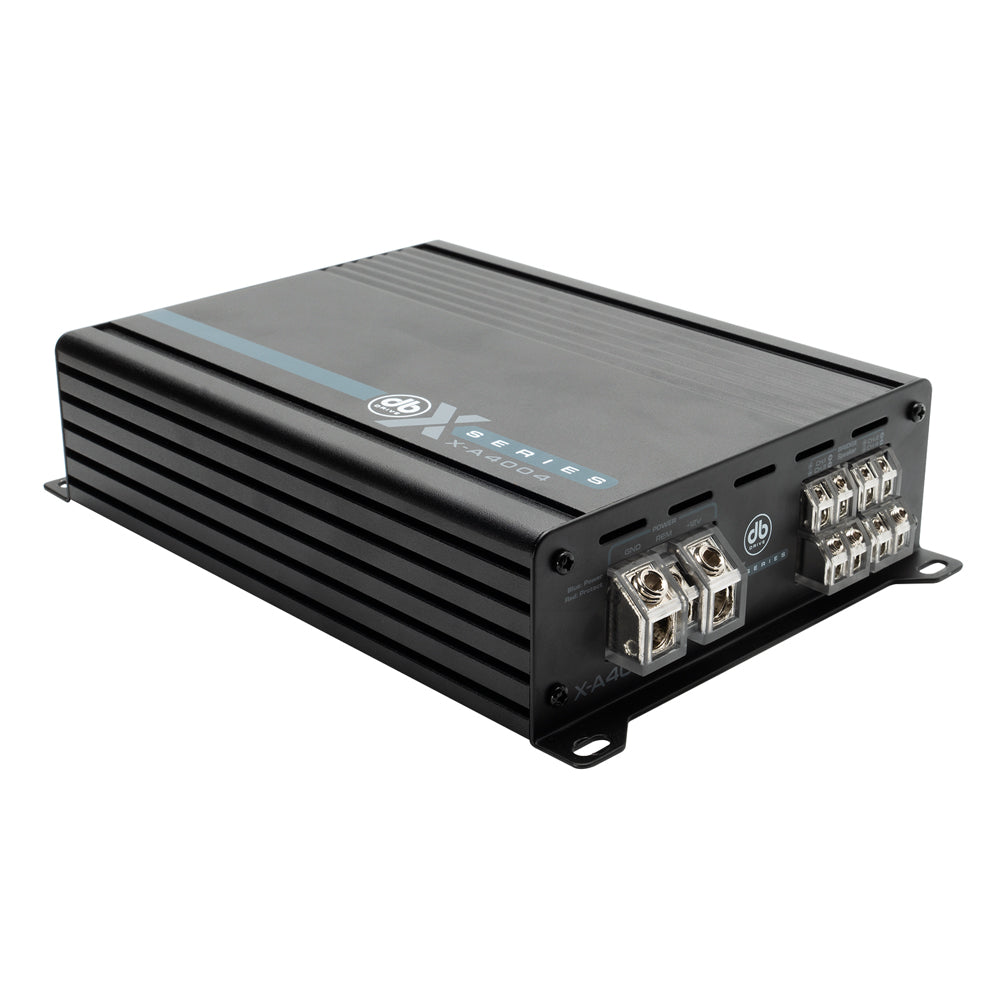

DB DRIVE AMP X-SERIES 4CH CLASS D RMS 75W X 4 @ 4OHM / 150W X 4 @ 2 OHM - X-A4004

NZ AUTOMOTIVE DISTRIBUTORS LTD - NZAD
_____________________________________
NZ's Favourite online Outlet for Automotive parts including Clutches, Flywheels, Brakes, Water Pumps, Bearings, 4WD Accessories, parts and more.

Want to upgrade the sound system in your vehicle, the DB DRIVE X-A4004 is your ultimate solution. Designed for both audiophiles and casual listeners, it offers dynamic, high-performance audio.

Key Features:
• Powerful Output: 75W x 4 at 4 ohms, 150W x 4 at 2 ohms, delivering clear, full-range sound.

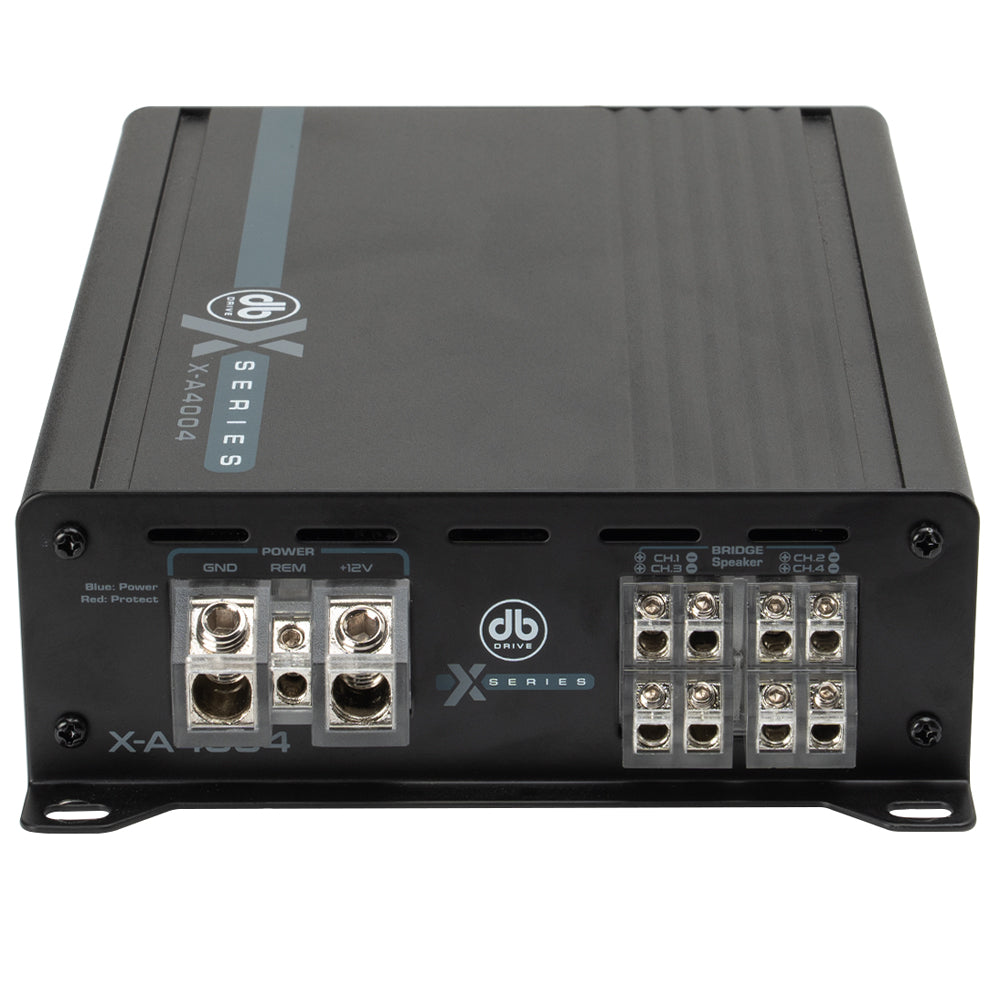

• Bridgeable Design: Easily drive a subwoofer for enhanced low-end performance.
• High-Efficiency Circuit: Perfect for modern vehicles with compact electrical systems.

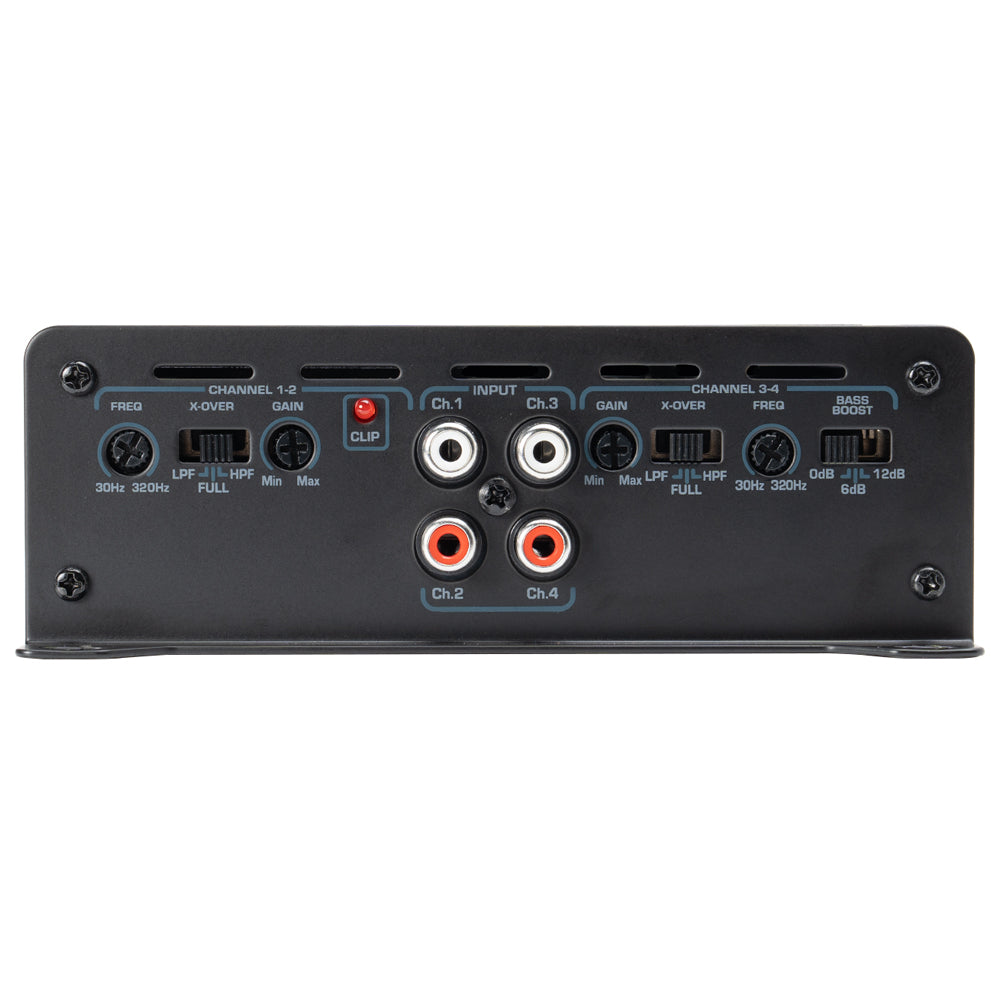

• Adaptive HP/Lp Crossover: Fine-tune your audio for optimal sound..
• 4-Layer PCB: Delivers cleaner, more accurate sound.
• Compact Design: Easy to install without compromising on power.

Transform your car into a concert hall with the X-A4004 for sound like never before.

Specifications:
• Total Dynamic Power output: 600 Watts
• 4 X 75 Watts @ 4 Ω Stereo
• 4 x 150 Watts @ 2 Ω Stereo
• 2 x 300 Watts @ 4 Ω Bridged
• Frequency Response: 20Hz - 20KHz
• Gain Level Control: 0.2-6V
• Input Impedance: 10K
• S/N Ratio: 90dB
• High Pass Filter: 30Hz-320Hz
• Low Pass Filters: 30Hz-320Hz
• Variable Bass Boost: 0-12dB
