New Zealand Automotive Distributors Ltd NZAD
We are distributors of replacement and performance automotive parts

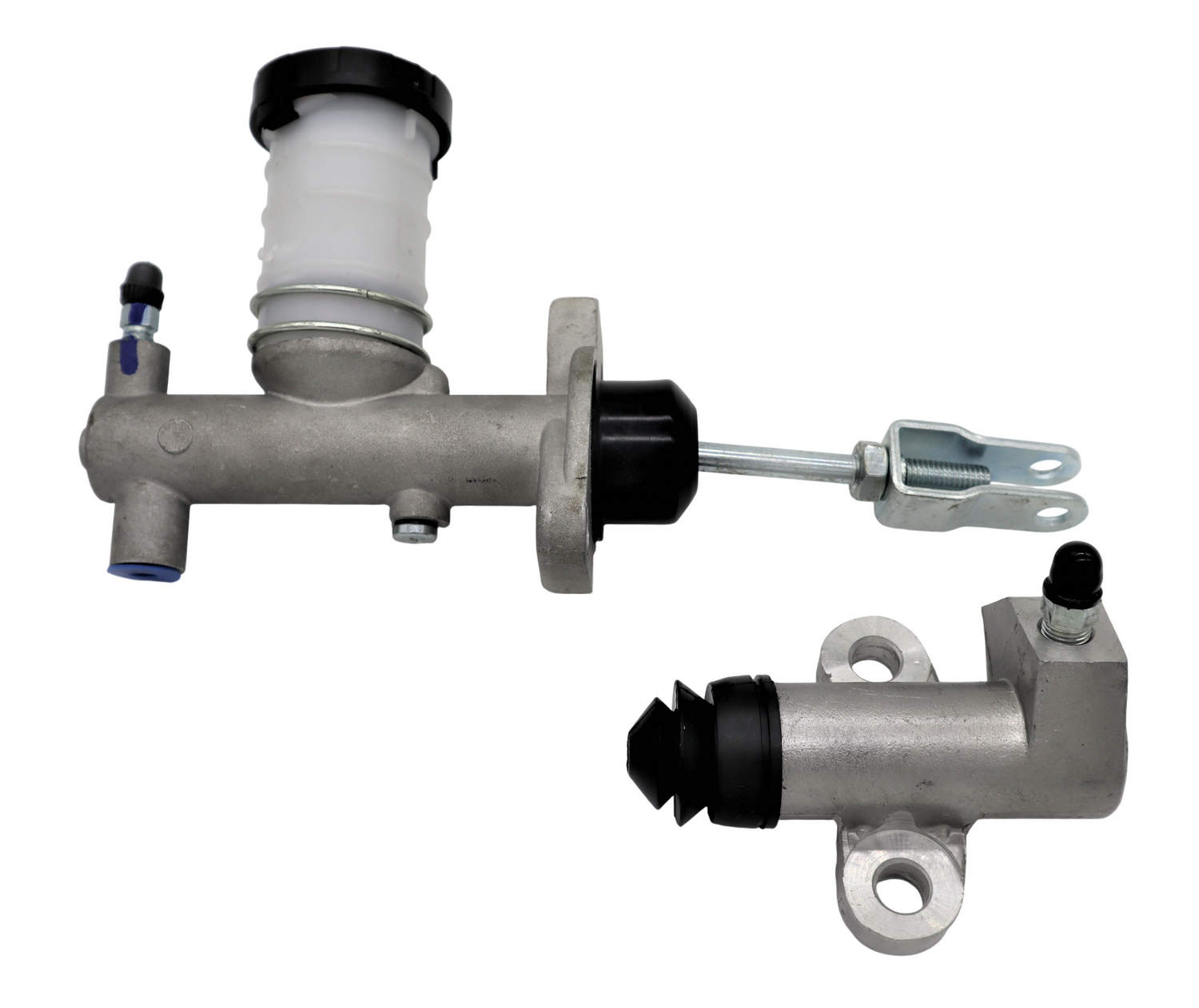

Brand new Two bolt 5/8" Clutch master cylinder and 3/4" Slave to suit

Skyline
R32 R33 RB20DE RB20DET RB25DE

Silvia 180sx 200sx
S13 S14 CA18DE CA18DET SR20DE SR20DET

Cefiro
A31 RB20DE RB20DET RB25DE RD28

Laurel
C33 RB20DE RB20DET RB25DE
RD28

MEASUREMENTS:
Master
Length of Body from Firewall: 117mm
Length of Pushrod Min-Max (centre of 8mm Clevis hole) 115mm- 128mm
Mounting Flange: 70mm to Centres-Each hole 25mm offset from centre line (8.5mm Holes)

Slave
Length of body: 80mm
Distance between bolt centres:52mm
Bolt Hole Diameter:10.5mm
( No pushrod included)

Please note the RB25DET gearbox has a different slave cylinder-we can supply this if needed.
